LED diagnostics — ORU

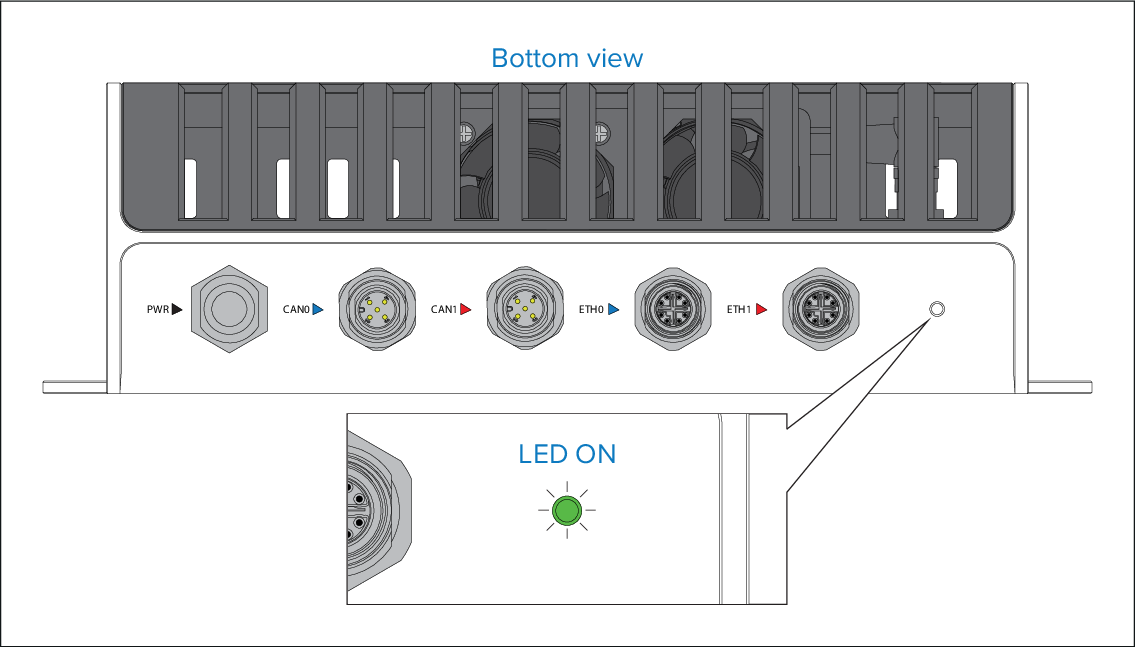

The Object Recognition Unit (ORU) has a single diagnostic LED located at the bottom of the unit. This LED is used to identify the unit’s power status.
LED diagnosticsORUORULED diagnostics
LED indication |
LED Status and applicable solutions |
|---|---|
 |
(Green) Powered up / Ok Normal operation — no user action is required. |
 |
(Green ) Updating (Green) Normal operation — no user action is required. |
 |
(Red) Update failed (Red) Update failed —Attempt to power cycle the unit and retry the update. If the issue persists, consider contacting your local dealer or Raymarine® Product Support. For Raymarine® Product Support contact details, refer to the following section: Raymarine product support and servicing |
 |
(Green) Rebooting Normal operation — no user action is required. |
 |
(No color) No power Refer to the advice found within the following section: Power up troubleshooting |
