LED diagnostics — CCU

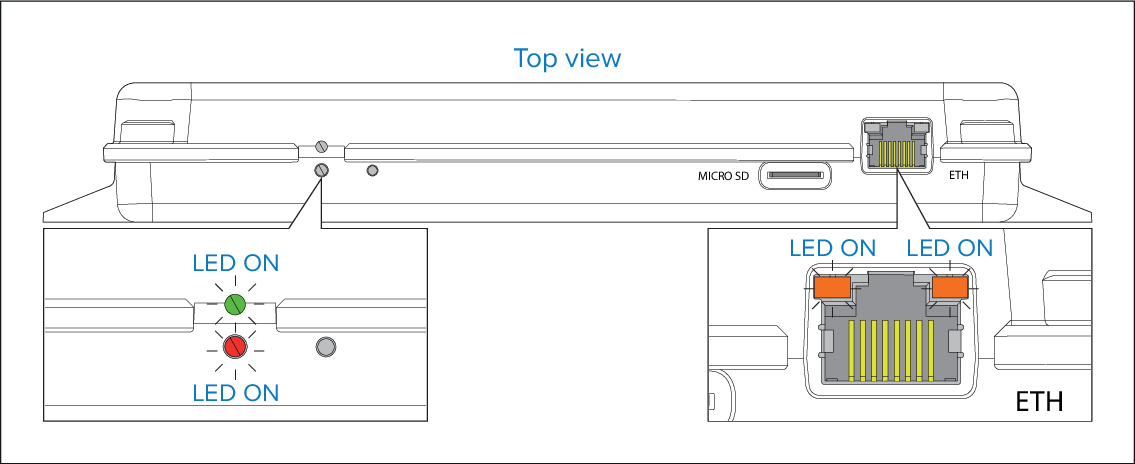

The Camera Conversion Unit (CCU) has 4 diagnostic LEDs located at the top of the unit. These LEDs are used to identify the unit’s status.

LED diagnosticsCCUCCULED diagnostics

LED indication	LED Status and applicable solutions
	(1x Red flashing LED) Powered up / Ok Normal operation — no user action is required.
	(1x Green flashing LED) Updating Normal operation — no user action is required.
	(2x Amber solid LEDs) 1000 Mbits/s Ethernet Active (transferring) Normal operation — no user action is required.
	(No color) No power Refer to the advice found within the following section: Power up troubleshooting
