Sailing pages

Sailing pages are designed to provide data related to sailing. These data pages are only available when the Sailing boating activity is chosen during the initial chartplotter start up wizard.

Data appSailing pagesNot all sailing pages are included as default pages. If a sailing page that you want to use is not included with your current default pages you can add it as a new page: Menu > Add Page > Sailing.

The following preset sailing pages are available:

Preset pages

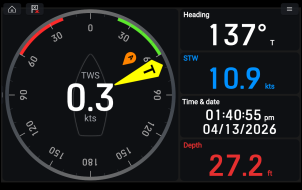

Wind gauge plus data

  • Wind gauge

  • Heading

  • DTW Distance To Waypoint

  • Time & date

  • Depth

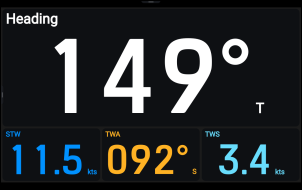

Heading plus data

  • Heading

  • DTW Distance To Waypoint

  • TWA True Wind Angle

  • TWS True Wind Speed

Sailing navigation

  • Tack Hdg Heading

  • Heading

  • BTW Bearing To Waypoint

  • COG Course Over ground

  • Sailing gauge

  • Sailing DTW Distance To Waypoint

  • SOG Speed Over Ground

  • TTWpt Time To Waypoint

  • STW Speed Through Water

  • Depth

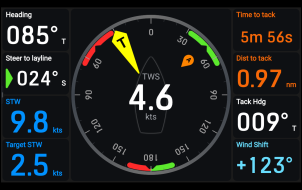

Performance sailing

  • Heading

  • Sailing gauge

  • Time to tack

  • Steer to layline

  • Distance to tack

  • STW Speed Through Water

  • Tack Hdg Heading

  • Target STW Speed Through Water

  • Wind Shift

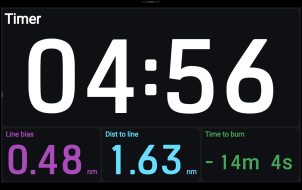

Race start

  • Timer

  • Line bias

  • Distance to line

  • Time to burn

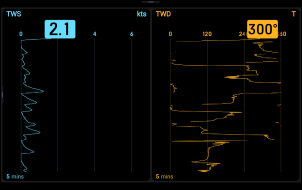

Wind graphs

  • TWS True Wind Speed

  • TWD True Wind Direction

Once added, the standard data items can be edited like any other data items.

Data items that appear within sailing gauges cannot be changed.
