Sailing gauge
The sailing gauge provides sailing related data in a simple to read graphical format.

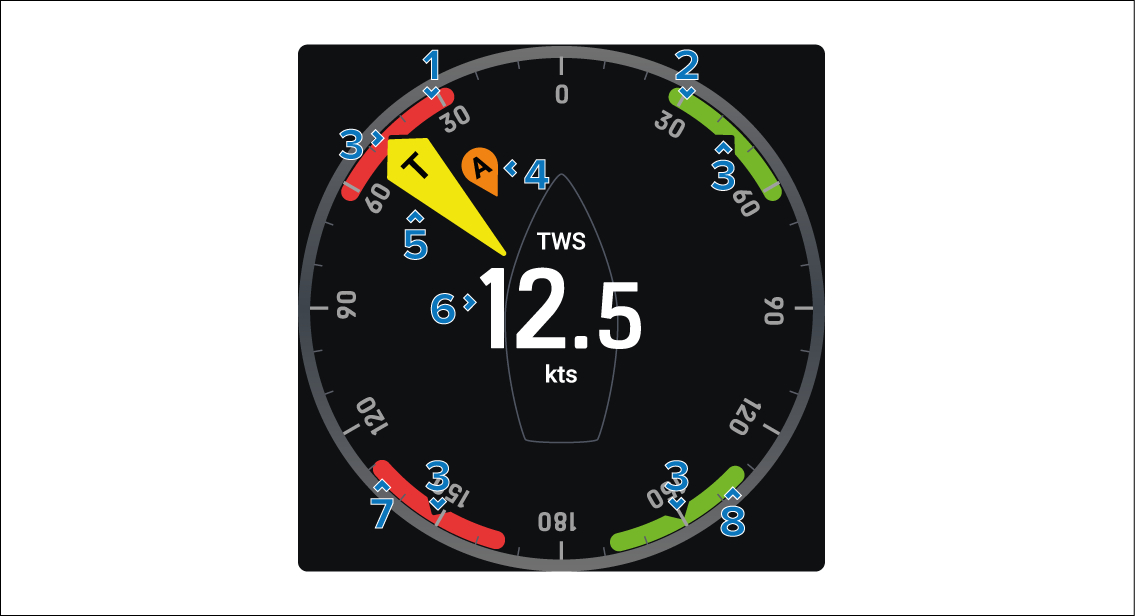

SailingSailing gaugeData appSailing gaugeThe sailing gauge consists of:
Description |
|
|---|---|
1 |
Port upwind close hauled angle indicator. |
2 |
Starboard upwind close hauled angle indicator. |
3 |
Steering notches — Available when the Sailing performance setting is set to Polar, or Fixed wind angles. Align the primary wind indicator with the notch to achieve optimum Velocity Made Good (VMG) in the desired direction. |
4 |
Apparent Wind Angle (AWA) indicator — This is the secondary wind indicator in this example. |
5 |
True Wind Angle (TWA) indicator — This is the primary wind indicator in this example. |
6 |
Wind speed — Can be switched between TWS True Wind Speed and / AWS Apparent Wind Speed. |
7 |
Port downwind close hauled angle indicator. |
8 |
Starboard downwind close hauled angle indicator. |

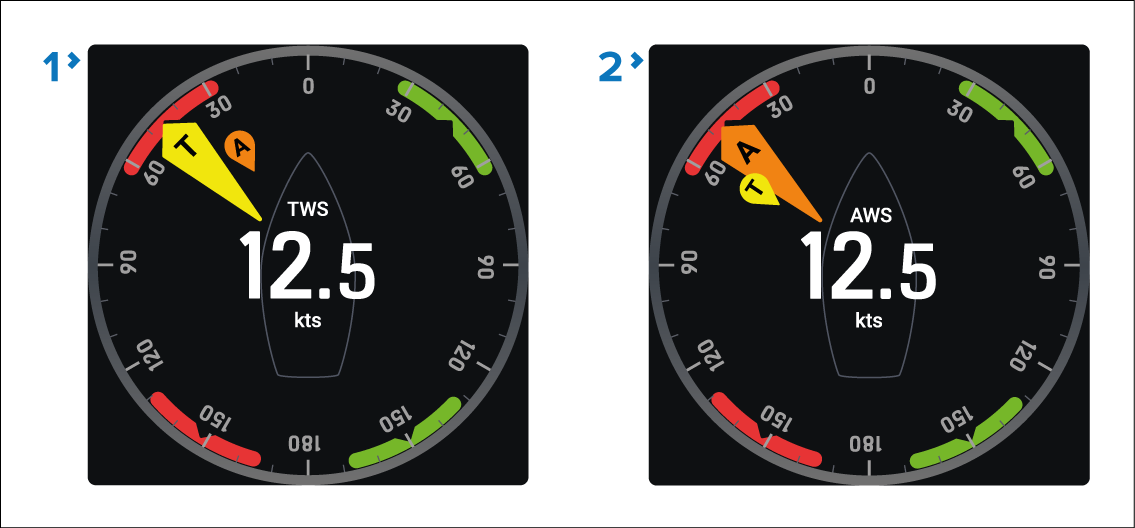

Wind type
The sailing gauge can use either True, or Apparent wind
Select and hold the on the gauge to change the Wind setting using the pop-over menu.
Description |
|
|---|---|
1 |
True wind: The primary wind indicator is the TWA indicator and the wind speed is TWS. |
2 |
Apparent wind: The primary wind indicator is the AWA indicator and the wind speed is AWS. |

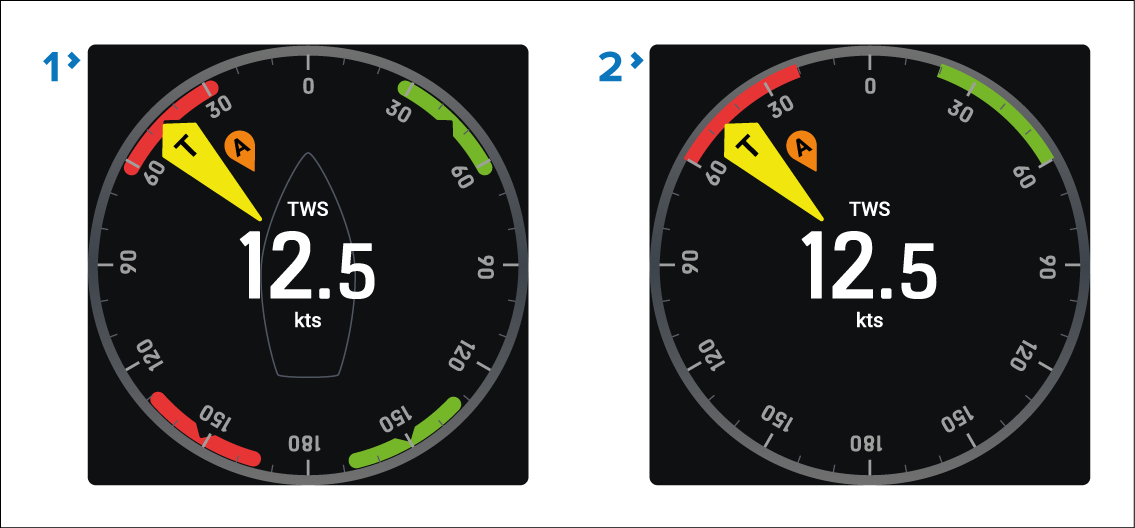

Sailing performance
The Sailing performance setting located in the Boat details menu determines the type of close hauled angle indictors used in the gauge.
Description |
|
|---|---|
1 |
Sail performance: Polar, Fixed Angles |
2 |
Sail performance: Mirrored TWA |
