Navigation pages

Navigation pages are designed to provide data related to navigation. The navigation pages that are provided by default are dependent on the boating activity chosen during the initial chartplotter start up wizard.

Data appNavigation pagesIf a navigation page that you want to use is not included with your current default pages you can add it as a new page: Menu > Add Page > Navigation.

The following preset navigation pages are available:

Preset pages

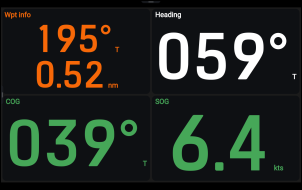

Basic navigation

  • Waypoint information

  • Heading

  • COG Course Over ground

  • SOG Speed Over Ground

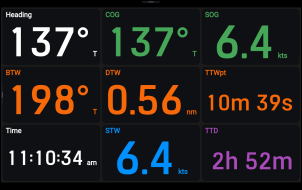

Route navigation

  • Heading

  • COG Course Over ground

  • SOG Speed Over Ground

  • BTW Bearing To Waypoint

  • DTW Distance To Waypoint

  • TTWpt Time To Waypoint

  • Time

  • STW Speed Through Water

  • Route TTG Time To Go

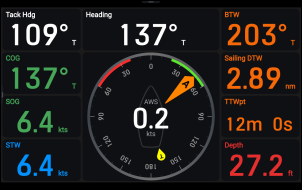

Sailing navigation

  • Tack Hdg Heading

  • Heading

  • BTW Bearing To Waypoint

  • COG Course Over ground

  • Sailing gauge

  • Sailing DTW Distance To Waypoint

  • SOG Speed Over Ground

  • TTWpt Time To Waypoint

  • STW Speed Through Water

  • Depth

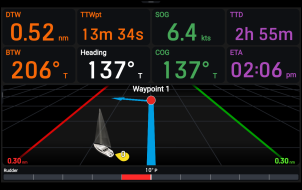

Rolling road

  • DTW Distance To Waypoint

  • TTWpt Time To Waypoint

  • SOG Speed Over Ground

  • TTD Time To Destination

  • BTW Bearing To Waypoint

  • Heading

  • COG Course Over ground

  • ETA Estimated Time of Arrival

  • Rolling road graphic

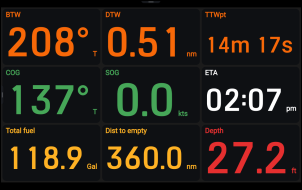

Navigation & fuel

  • BTW Bearing To Waypoint

  • Sailing DTW Distance To Waypoint

  • TTWpt Time To Waypoint

  • COG Course Over ground

  • SOG Speed Over Ground

  • ETA Estimated Time of Arrival

  • Total fuel

  • Distance to empty

  • Depth

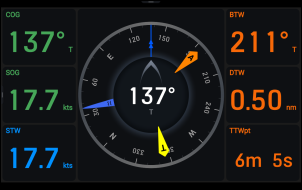

Compass & data

  • COG Course Over ground

  • Compass gauge

  • BTW Bearing To Waypoint

  • SOG Speed Over Ground

  • DTW Distance To Waypoint

  • STW Speed Through Water

  • TTWpt Time To Waypoint

Once added, the standard data items can be edited like any other data items.

Data items that appear within sailing gauges, compass gauges and rolling road graphics cannot be changed.
