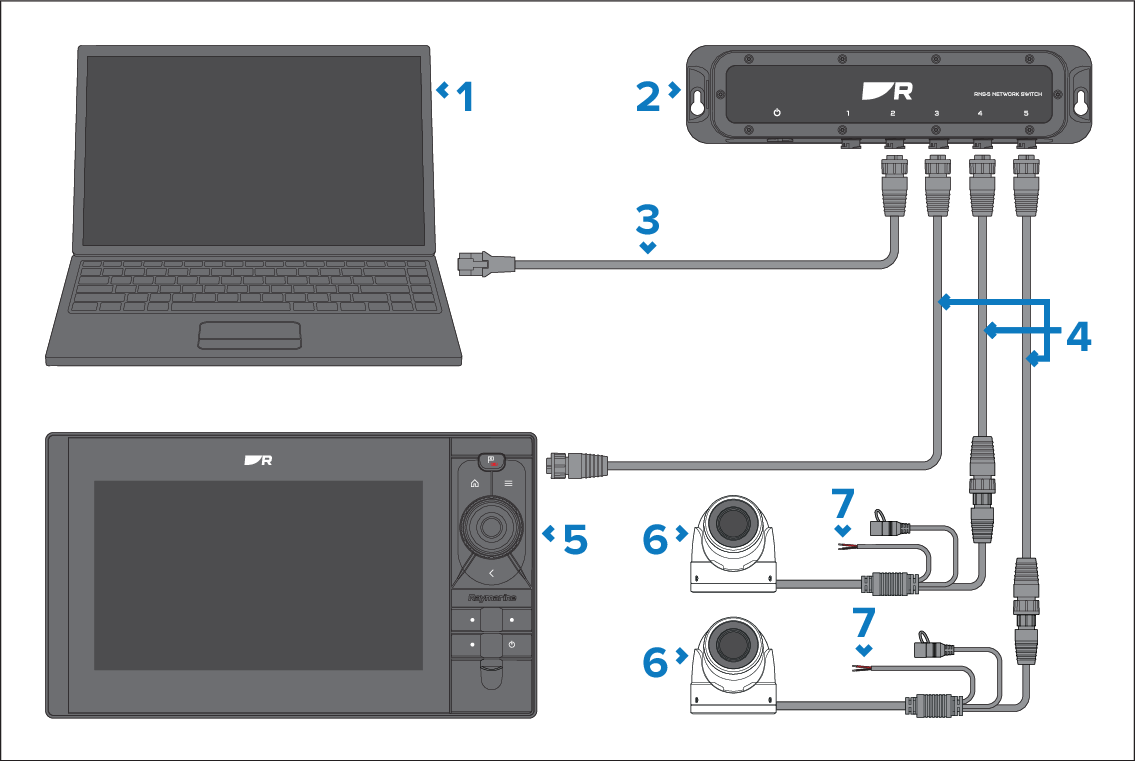

Example dedicated power system overview
An example overview of different products which can be connected to and used in conjunction with the CAM400, when it is being supplied power from a 12 V dc power source.
The system shown is intended as an example only and may differ from your planned installation.
Description |
|
|---|---|
1 |
Laptop PC. |
2 |
Network switch (RNS-5 currently illustrated). |
3 |
RayNet (female) to RJ45 (male) adapter cable, available separately. |
4 |
RayNet (female) to RayNet (female) cable, available separately. |
5 |
Compatible chartplotter (Axiom 2 Pro currently illustrated). |
6 |
CAM400. |
7 |
CAM400 12 V dc power connection. For connection information, refer to: Dedicated power connection |
Note
For simplicity power connections for other devices is not shown.
