Dedicated power connection
The CAM400 can be powered from a 12 V dc power source.

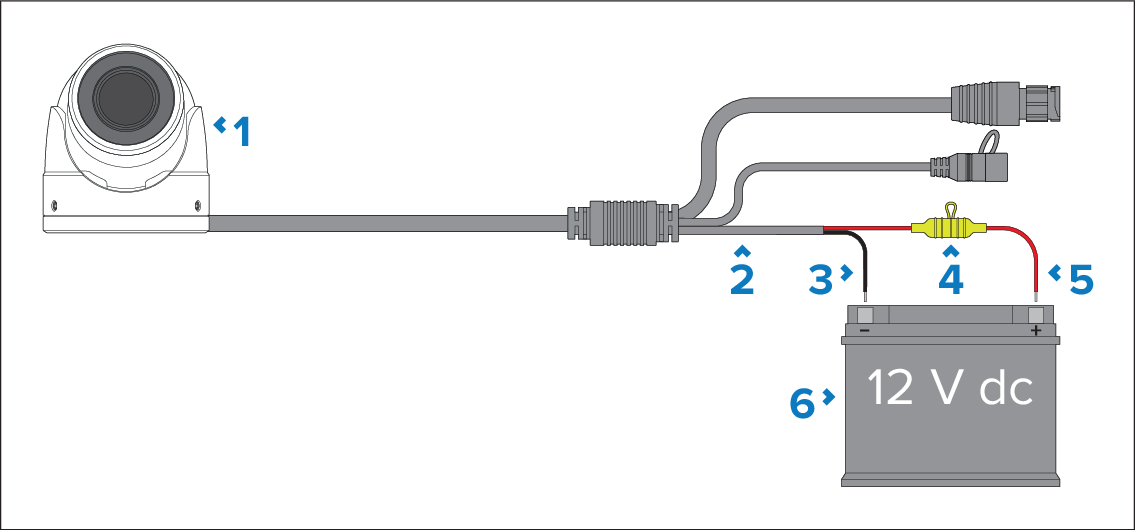

ConnectionsDedicated powerThe camera’s power cable can be used to create a bare-wire connection to a 12 V dc power supply:
Description |
|
|---|---|
1 |
CAM400. |
2 |
CAM400’s dedicated power cable. |
3 |
Black wire (negative) — connects to the power supply’s negative terminal. |
4 |
Waterproof fuse holder containing a suitable-rated inline fuse (not supplied), which must be fitted to the red positive wire. For further fuse rating information, refer to: Inline fuse and thermal breaker ratings |
5 |
Red wire (positive) — connects to the power supply’s positive terminal. |
6 |
12 V dc power supply. |
