Example Augmented Reality system overview
The camera can be used in conjunction with an AR200 sensor and a compatible chartplotter to enable ClearCruise® Augmented Reality features.

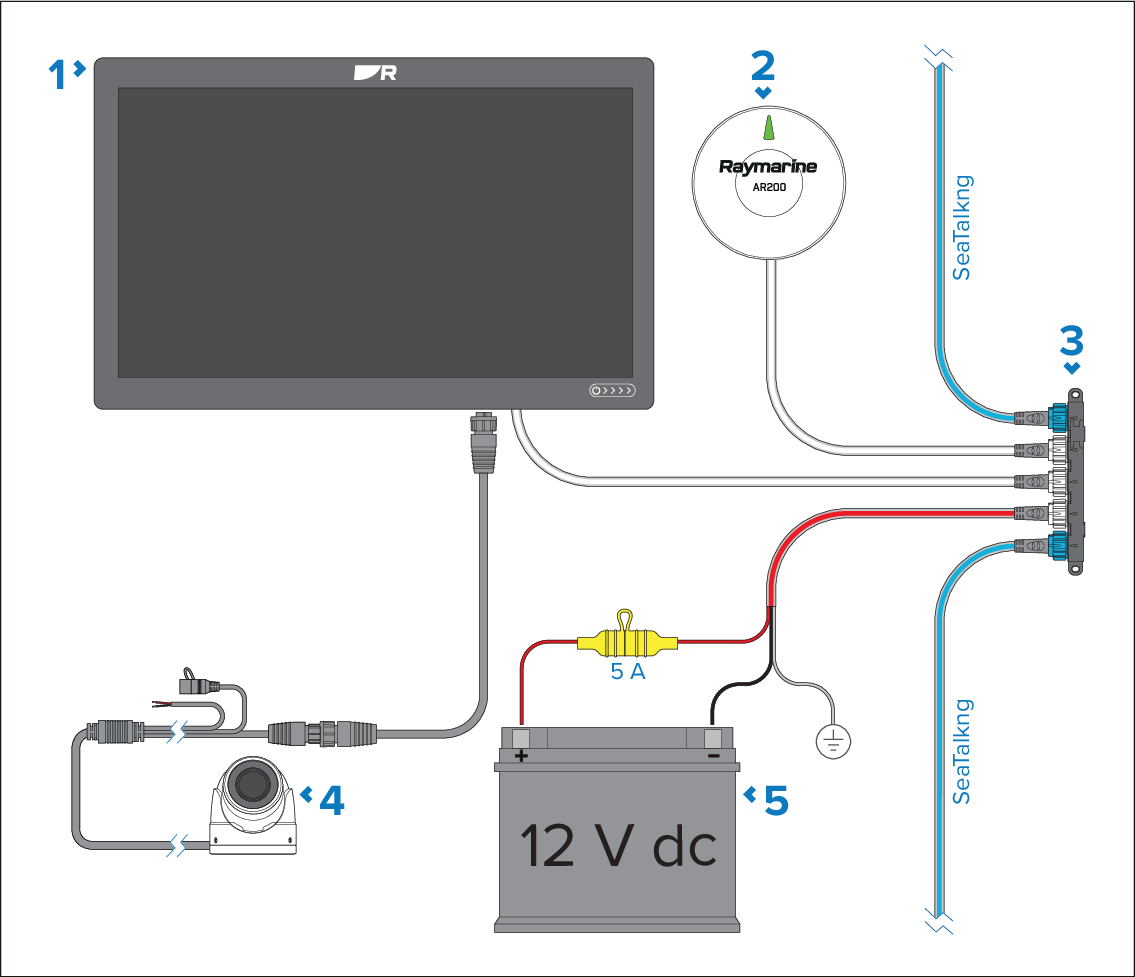

System exampleAugmented Reality (AR)Augmented Reality (AR)The following system example shows the components and connections required to enable ClearCruise® Augmented Reality on your system.
Description |
|
|---|---|
1 |
Compatible chartplotter. In this example the chartplotter is also the Power Sourcing Equipment (PSE) providing Power over Ethernet (PoE) to the camera (Axiom XL currently illustrated. |
2 |
AR200 sensor (product number: E70537), supplied with the T70603 / T70604 system packs and available separately. |
3 |
SeaTalk NG backbone. |
4 |
CAM400. |
5 |
12 V dc power supply providing power to the SeaTalk NG backbone. |
ClearCruise® Augmented Reality is NOT available via the CAM400’s Web browser user interface and can only be accessed through the chartplotter’s Video app. For more information on ClearCruise® Augmented Reality, refer to one of the following documents:
Axiom 2 LightHouse 5 Operation Instructions (81432), or;
LightHouse 4 Operation Instructions (81406).
Links to the latest version of these documents can be found under the following section: Product documentation
