Network connection
The camera is connected to the network using the network cable connection that has a male RayNet connector.

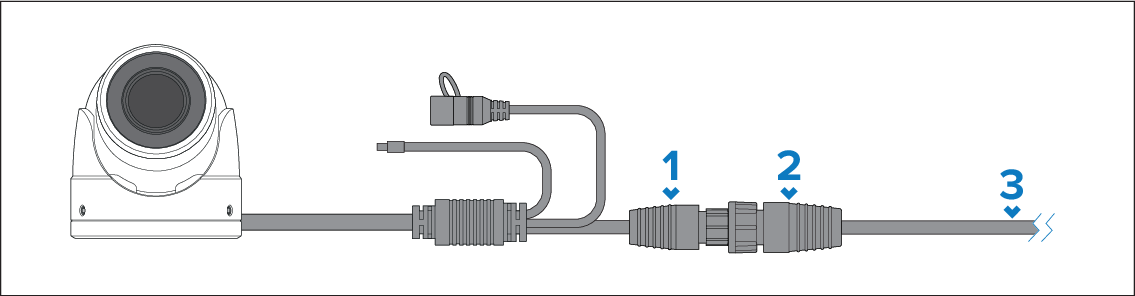

Description |
|
|---|---|
1 |
Male RayNet cable connector. |
2 |
Female RayNet cable connector. |
3 |
Connection to network device. |
Ensuring correct orientation, insert the camera’s Male RayNet cable connector. into the Female RayNet cable connector of the network cable connected to your network device.
Turn the Female RayNet cable connector’s locking collar clockwise to lock into position.
