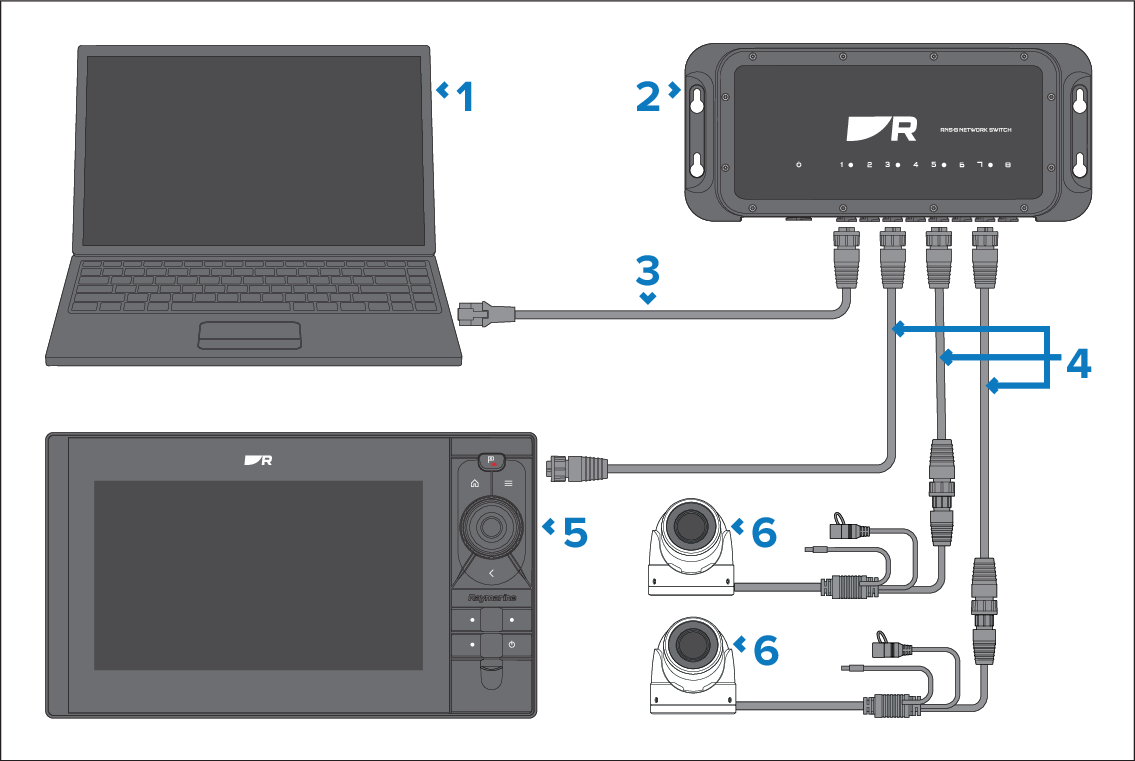

Example PoE system overview
An example overview of different products which can be connected to and used in conjunction with the CAM400, when it is being supplied Power over Ethernet (PoE) from Power Sourcing Equipment (PSE).
When the camera is being supplied Power over Ethernet, both data and power signals are transferred across a single network connection.
The system shown is intended as an example only and may differ from your planned installation.
Any device supplying to the CAM400 must output a supply voltage in the range of 44 V dc to 57 V dc.
When the camera’s dedicated 12 V dc power connection is not used, the dedicated power cable wires must be insulated.
Description |
|
|---|---|
1 |
Laptop PC. |
2 |
Power Sourcing Equipment (PSE) providing PoE to the CAM400 (RNS-8 currently illustrated). |
3 |
RayNet (female) to RJ45 (male) adapter cable, available separately. |
4 |
RayNet (female) to RayNet (female) cable, available separately. |
5 |
Compatible chartplotter (Axiom 2 Pro currently illustrated). |
6 |
CAM400. |
For simplicity power connections for other devices are not shown.
