Removing covers and fuses

Before assembling the Master and Remote systems the fuses covers and fuses should be removed.

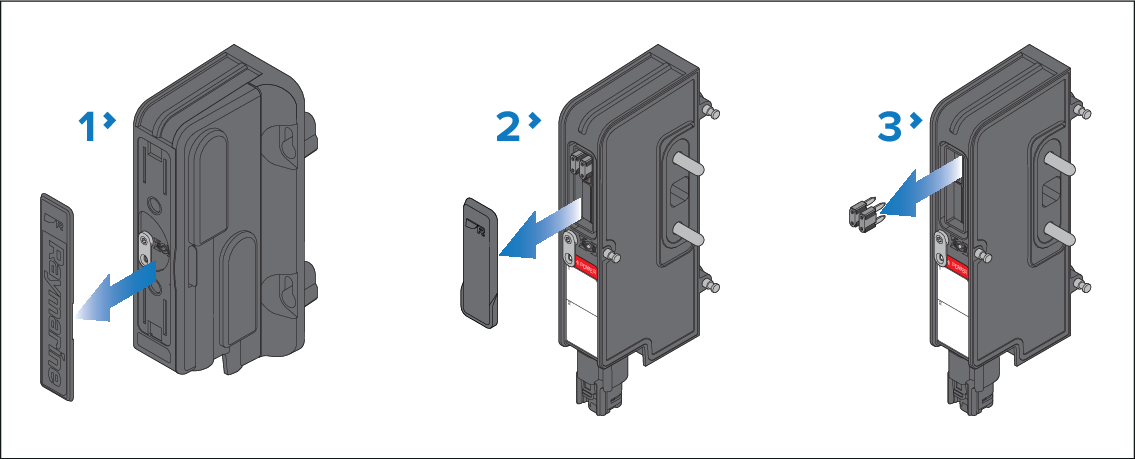

  1. Remove the cover from the Power supply module.
  2. Remove the covers from the output modules.
  3. Remove the fuses from the output modules.

The fuses and covers are replaced after installation is complete and all connections have been made. For fuse replacement details refer to: Replacing module fuses
