Fuse by-pass

If a High power module channel or Low power module channel fails and all efforts to restore have been unsuccessful then the module channel can be temporarily by-passed.

Note

  • Fuse by-pass should only be used in critical situations for a limited time.

  • The Signal module and Reverse power module do not include the by pass function.

Module fuseBy-passChannel by-passFuse by-pass

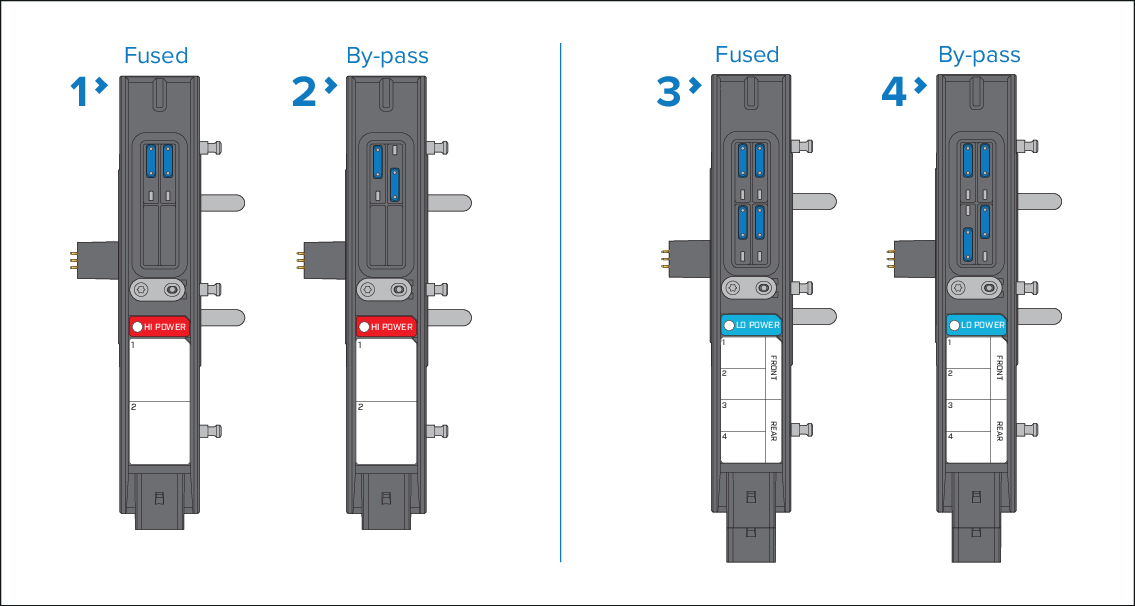

Figure 1. Fuse bypass examples

  1. High power module, both channels fused.

  2. High power module, channel 2 in by-pass mode

  3. Low power module, all channels fused.

  4. Low power module, channel 3 in by-pass mode
