SVM camera — preparing the mounting surface

MountingCameraCameraMounting

Note

The following procedure is intended to prepare a mounting surface for an SVM camera. For mounting instructions related to the CCU or ORU units, refer to:

Important

Before preparing the mounting surface, ensure that:

  • Your selected location meets the location requirements. For details, refer to: Location requirements

  • You have identified cable connections and the route that the cables will take.

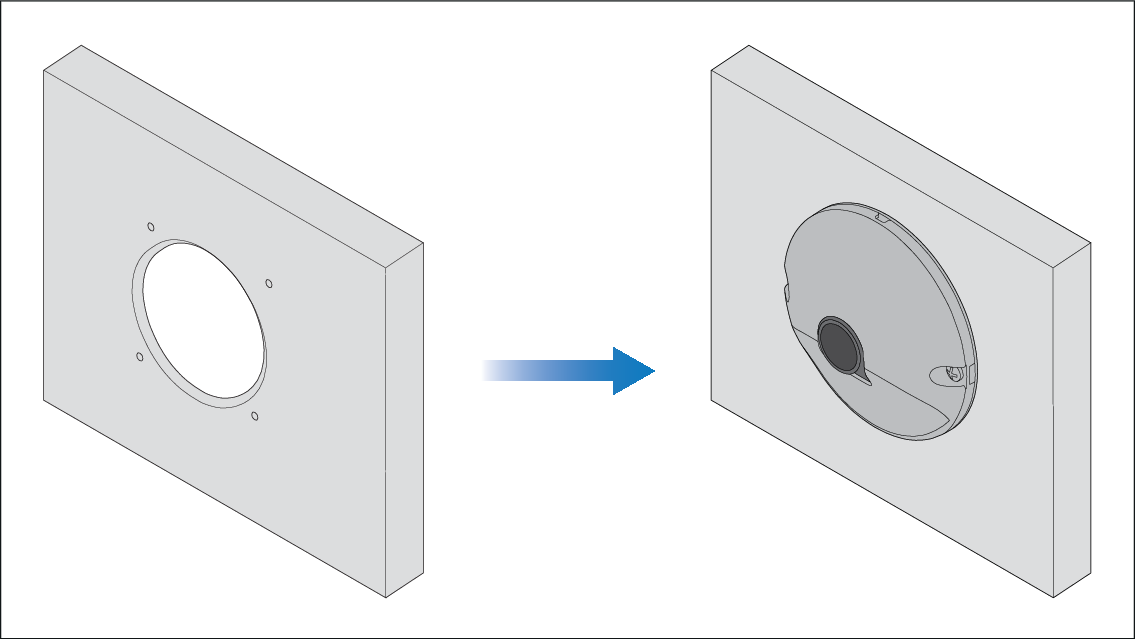

  1. Mark the cutout line and drill hole locations identified on the supplied mounting template on the mounting surface.
  2. Use a drill and an appropriate size drill bit to drill the holes required at the marked locations.
  3. Use a drill and an appropriate size hole cutter to create the cutout. The cutout diameter is 60.00 mm (2.36 in).
  4. Use a half round file and/or sandpaper to smooth-out rough edges or burs on the cutout hole.
