CCU — mounting

MountingCCUCCUMounting

Before mounting the product, ensure that you have:

  • Selected a suitable location, based on the location requirements found in this document.

  • Identified the relevant cable connections and the route that the cables will take.

Important

The CCU must NOT be installed on a metallic surface, and each of the fixings used to mount the unit must NOT come into contact with a metallic surface once secured.

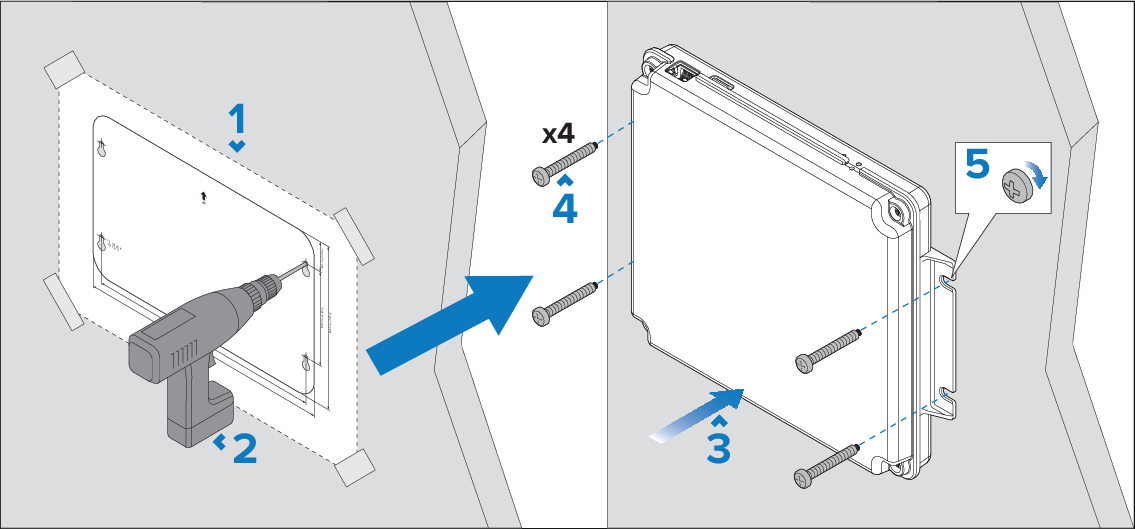

  1. Secure the mounting template in the required location using adhesive tape.
  2. Drill 4 holes at the marked location on the template, and then remove the mounting template.
  3. Position the unit over the 4 drill holes.
  4. Push the 4 fixing screws through the Camera Conversion Unit’s mounting lugs and into the drill holes.
  5. Fully tighten the 4 fixing screws.
Note

Drill bit, tap size and tightening torque are dependent on the thickness and type of material the unit is to be mounted on.
