Cutting the mast cable

Once the mast cable has been fully routed, cut off any excess cable and prepare the wires for connection to the gateway.

Wire strippingConnections Wire stripping

1. Cut the existing mast cable.

   Ensure that sufficient length remains to easily make the connections and remove them again if necessary.

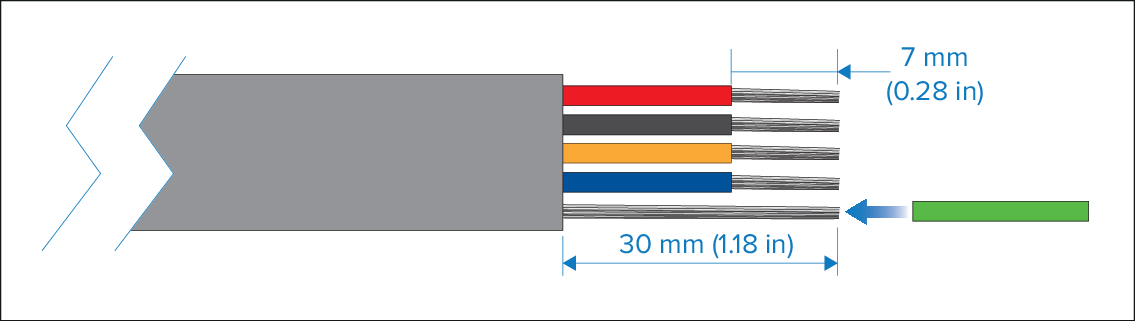

2. Remove 30 mm (1.18 in) of the cable insulation/sheath.
3. Remove 7 mm (0.28 in) of insulation from each wire.
4. Cut the supplied heat shrink tube to an appropriate size (e.g.: 23 mm (0.91 in)), and push all the way along the ground wire (the wire which has no insulation).
5. Re-tin each wire.
