Connecting the wind transducer

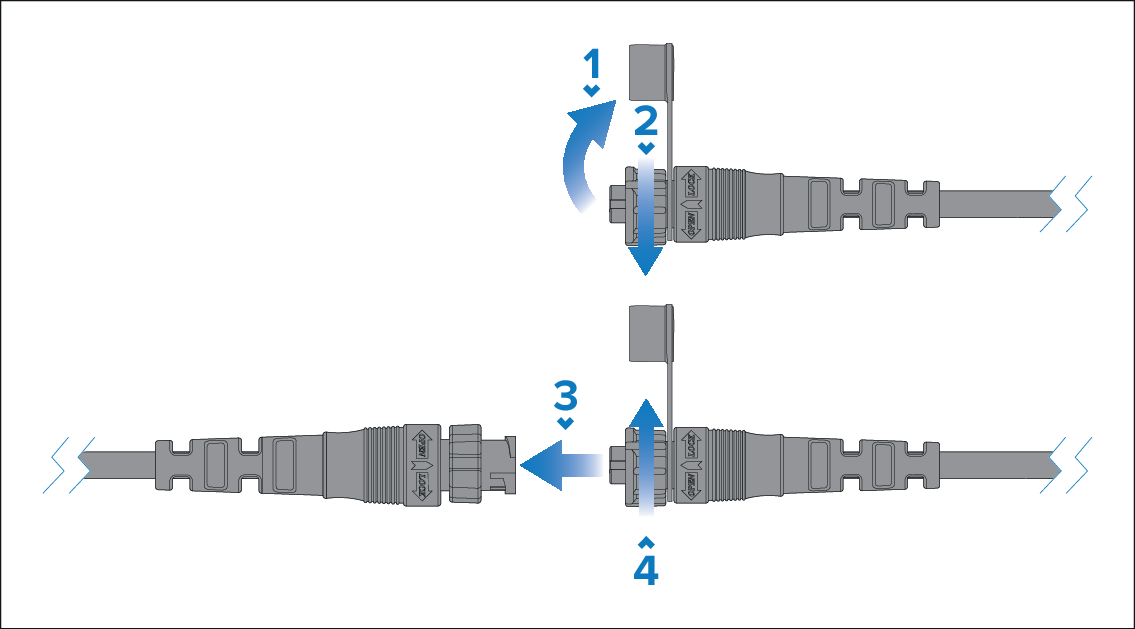

Follow the steps below to connect the wind transducer’s cable to the connector on the supplied mast cable.

ConnectionsWind transducer Cable

  1. Remove the protective cap by pulling it away from the connector.
  2. Twist the cable connector’s locking collar into the unlocked position.
  3. Align the arrows on both connectors and insert the mast cable connector fully into the wind transducer connector.
  4. Twist the cable connector’s locking collar into the locked position.

The dust cap should remain on the cable so that it can be used to protect the cable connector in the future if the wind transducer has to be removed.
