Typical system examples
System examples
The following illustrations show the various products that can be connected in a typical system. These systems are shown as an example only and may differ from your planned installation.
For information on how to connect the products, refer to: Cables and connections — General information
For information on available cables and accessories, refer to: Spares and accessories

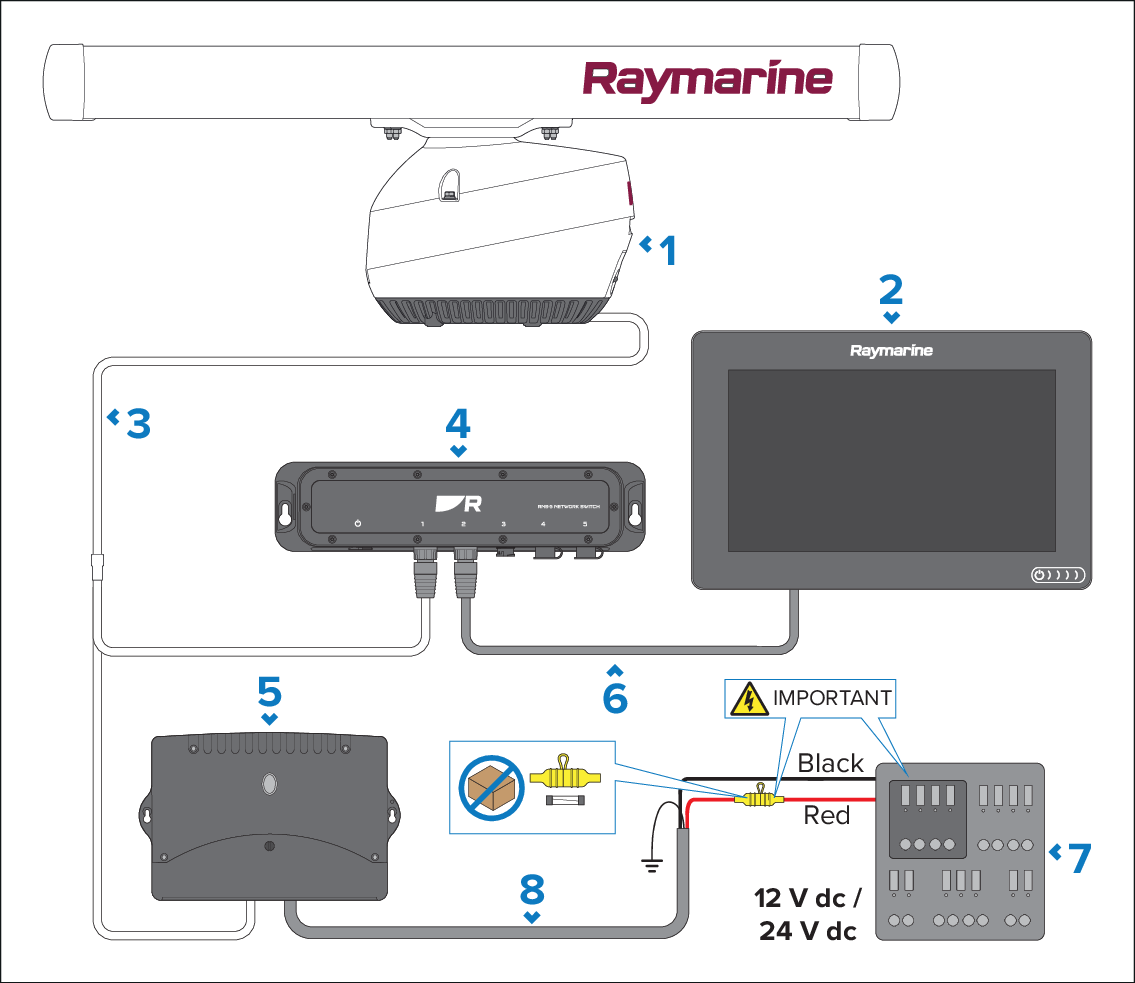

RayNet (Ethernet) network switch connection:
RayNetNetwork switchPower converterVCM100VCM100
Description |
|
|---|---|
1 |
Magnum Open Array Radar scanner, supplied. |
2 |
Compatible multifunction display / chartplotter, available separately. |
3 |
15 m (49.21 ft) Radar-to-’RayNet & power’ cable, supplied. |
4 |
RayNet (Ethernet) network switch (RNS-5 currently illustrated), available separately. |
5 |
VCM100 power converter, supplied. |
6 |
RayNet (Ethernet) to RayNet (Ethernet) cable, available separately. |
7 |
12 V dc / 24 V dc power supply (distribution panel or battery). |
8 |
VCM100 power cable (not supplied). |
Some power connections are omitted from the illustration above. The network switch and multifunction display each require a dedicated power connection.

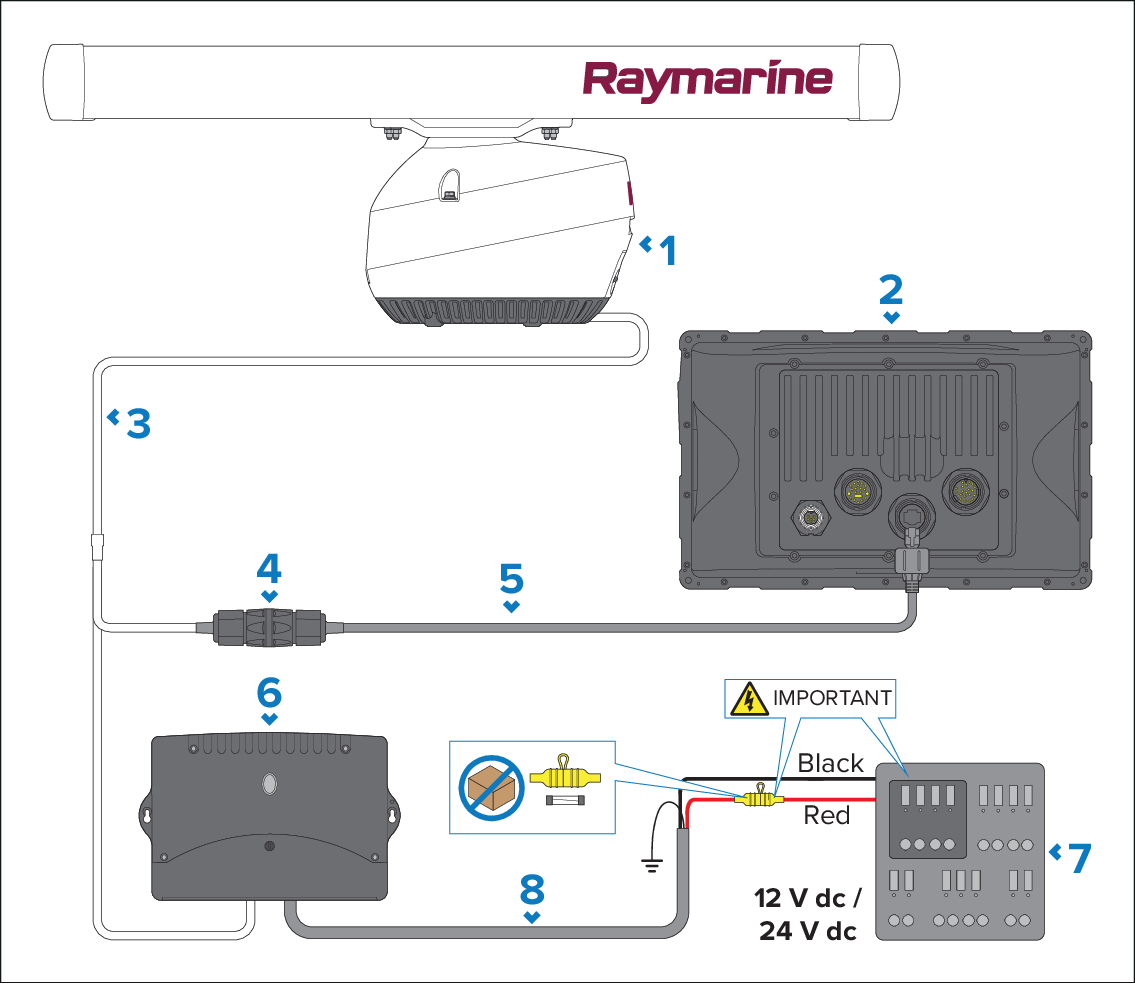

RJ45 (SeaTalk HS) legacy multifunction display / chartplotter:
RayNetNetwork switchPower converterVCM100VCM100
Some power connections are omitted from the illustration above. The multifunction display / chartplotter requires a dedicated power connection.
A separate Radar to “RJ45 & power” accessory cable is available for connections to equipment that requires an RJ45 connector. For more information on the spares and accessories available, refer to: Spares and accessories
Description |
|
|---|---|
1 |
Magnum Open Array Radar scanner, supplied. |
2 |
Compatible multifunction display / chartplotter, available separately. |
3 |
15 m (49.21 ft) Radar-to-’RJ45 & power’ cable, available separately. |
4 |
RJ45 to RJ45 waterproof coupler, available separately. |
5 |
RJ45 to waterproof RJ45 (SeaTalk HS) cable, available separately. |
6 |
VCM100 power converter, supplied. |
7 |
12 V dc / 24 V dc power supply (distribution panel or battery). |
8 |
VCM100 power cable (not supplied) |
Fuses (not supplied) are required for circuit protection for the VCM100. For suitable fuse ratings, refer to: Circuit breaker and fuse ratings
