Radar scanner connections overview

The Radar scanner includes the following connectors:

ConnectionsOverviewRear panel

Connector

Connects to

Suitable cables

  • RayNet (Ethernet) network devices.

  • RJ45 (SeaTalk HS) network devices.

  • 12 V / 24 V power supply.

  • Radar-to-’RayNet & power’ cable, supplied.

  • Radar-to-’RJ45 & power’ cable, available separately.

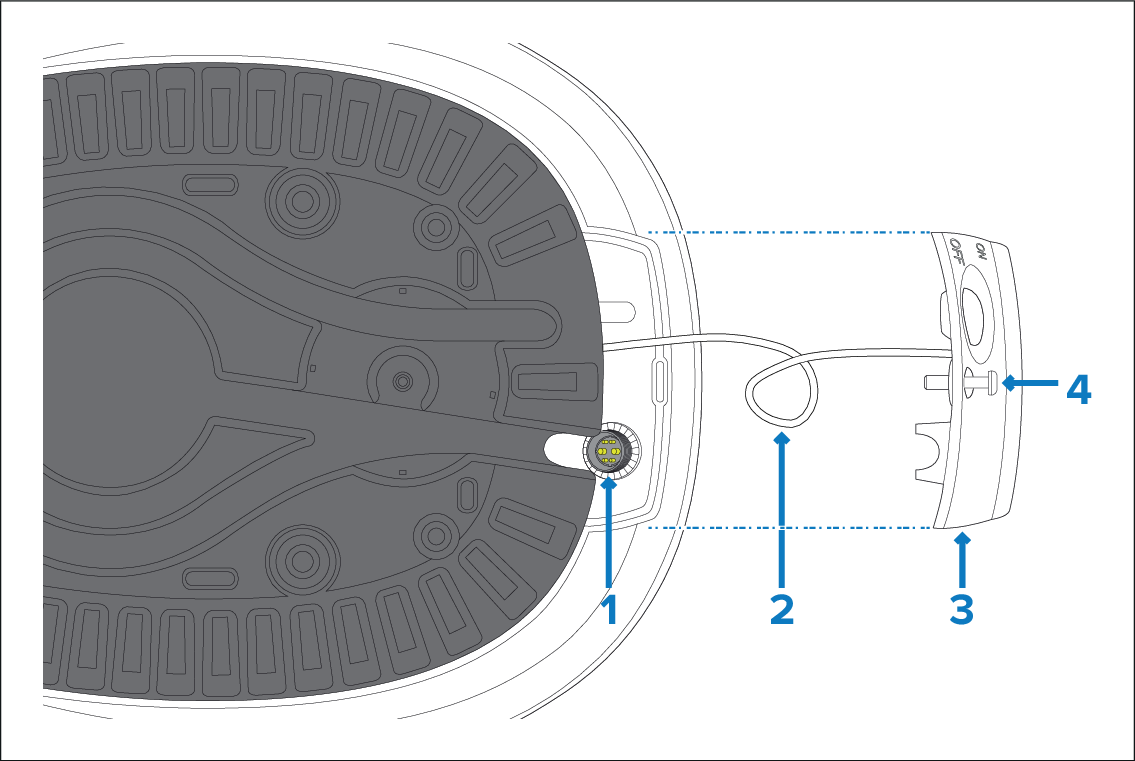

The combined power-and-data connector is located on the underside rear of the scanner:

Description

1

Power-and-data connector.

2

Lanyard.

3

Rear panel.

4

Rear-panel retaining screw.
Note

The rear panel must first be removed in order to access the connector. For more information, refer to: Making the Radar cable connection
