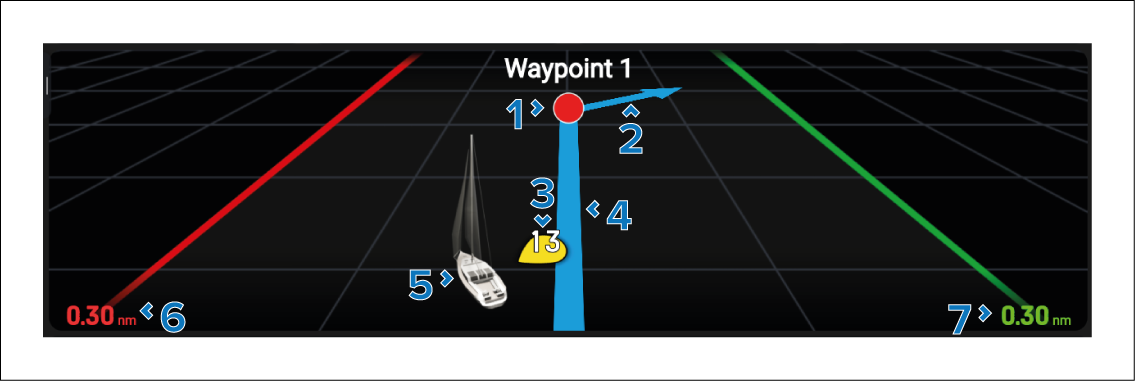

Rolling road
The rolling road shows current vessel position and heading, relative to the current destination, or route and cross track error (XTE) limits.
Data appRolling road
Description |
|
|---|---|
1 |
Target waypoint. |
2 |
Direction of turn to the next waypoint. |
3 |
Wind angle and speed indicator — The indicator can be turned on and off from the pop-over menu. |
4 |
Intended track. |
5 |
Vessel icon — The vessel icon provides position and heading in relation to the intended track. |
6 |
Port XTE line. |
7 |
Starboard XTE line. |
