Mounting gasket installation (surface cable routing)

In installations where the cabling is routed on the mounting surface the camera cable must pass through the cable feed hole and out of the exit channel..

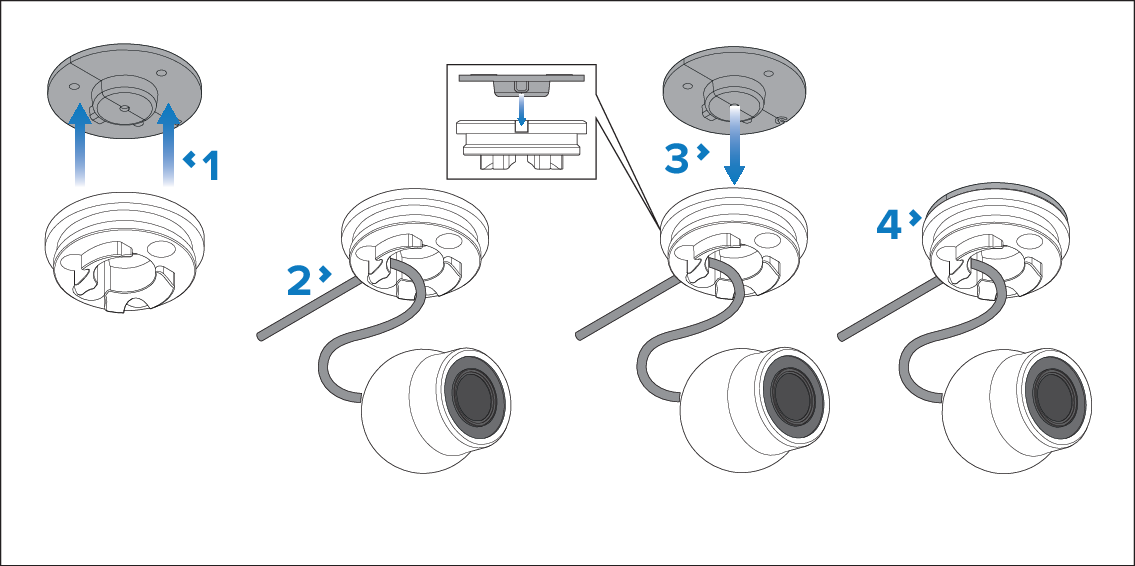

MountingGasket installation

1. Remove the mounting gasket from the camera base.
2. Route the camera cable through the cable feed hole and out of the exit channel in the camera base.
3. Align the mounting gasket’s cable channel plug with the corresponding cable exit channel in the camera base, then reinsert the mounting gasket into the camera base.
4. Ensure that the gasket is fully seated around the circumference of the camera base.
