Mounting the unit (surface cable routing)

Procedure for mounting the camera base for installations using surface cable routing.

Pre-requisites:

Before mounting the unit, ensure that you have:

  • Prepared the surface correctly for surface cable routing.

  • Installed the gasket correctly for surface cable routing.

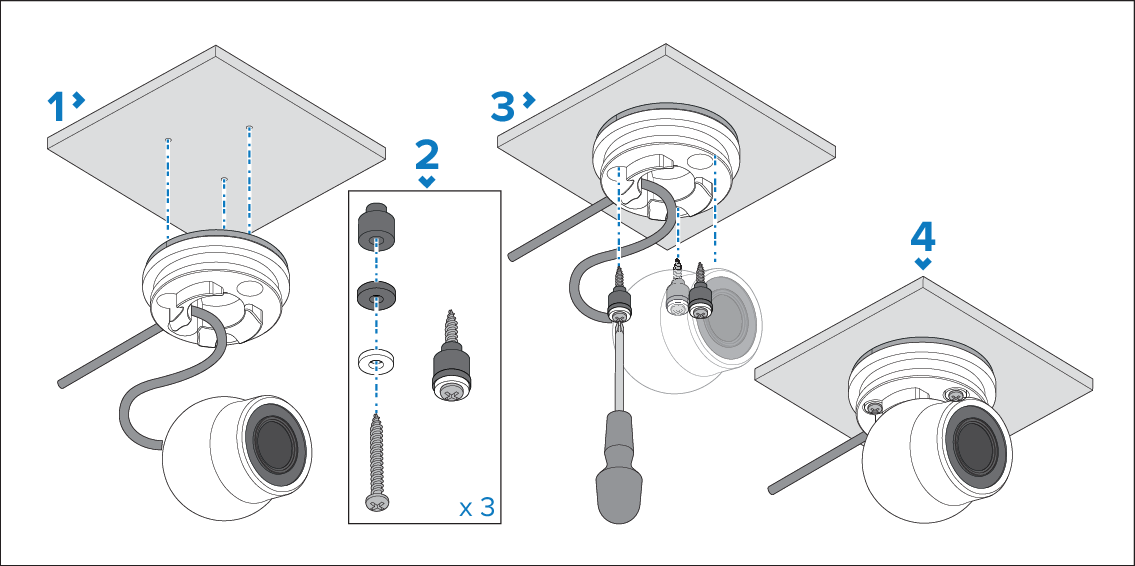

  1. Align the fixing holes in the camera base with the fixing holes in the mounting surface and hold the camera base in place.
  2. Place the mounting hardware over the fixing screws in the following order: white plastic washers, silicone washers, and then rubber plugs.
  3. Insert the mounting hardware into the mounting holes and secure by tightening the fixing screws to a torque of 1.4 N·m (1.03 lbf·ft).
  4. Gently pull the camera cable through the cable feed hole until the camera ball is seated in the top of the camera base. Remove any excess sealant from the cable.
