Pilot sidebar — Locked heading (Auto)

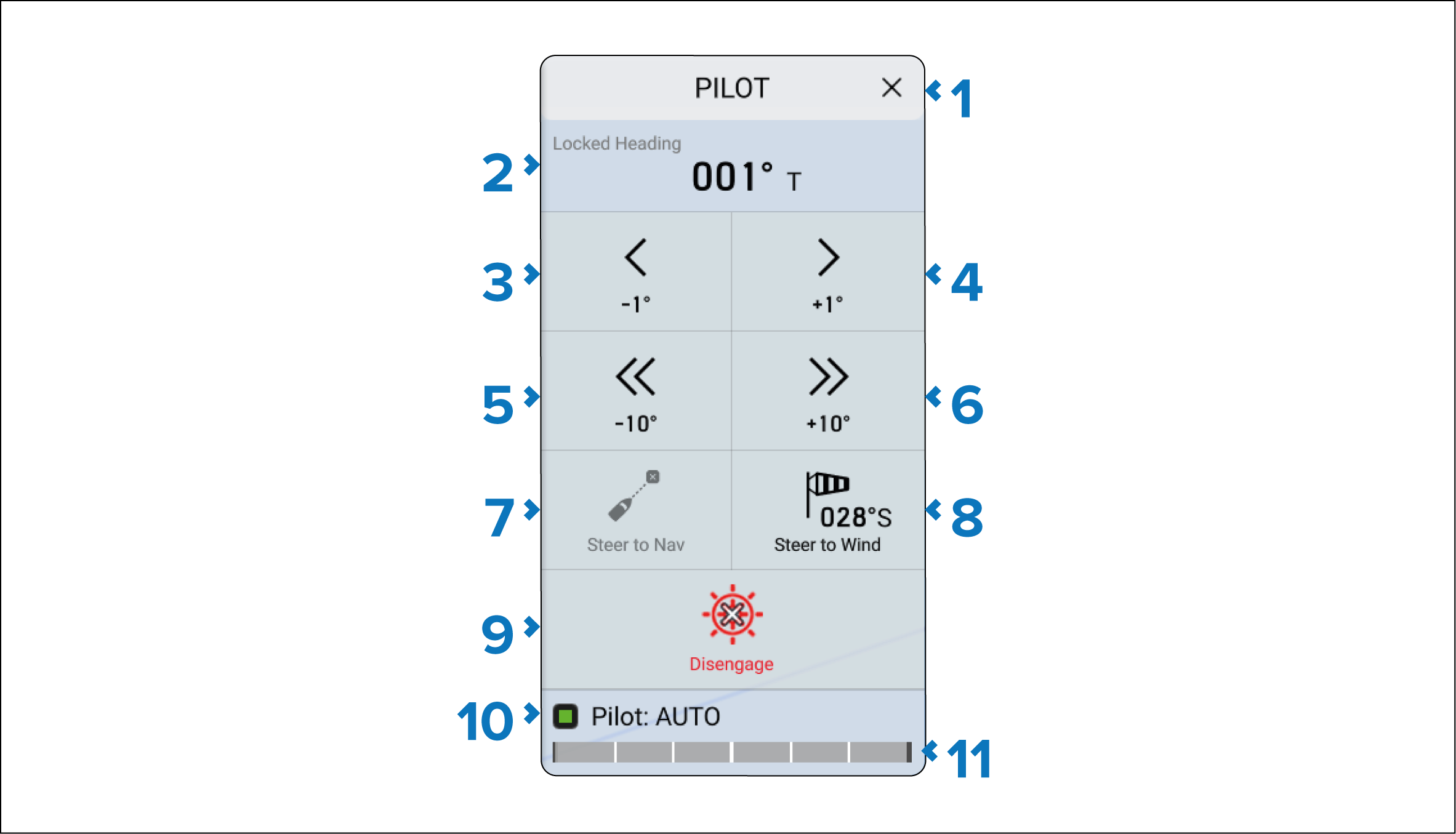

When the autopilot is engaged in Locked heading (Auto) mode the Auto pilot sidebar will be displayed.
Description |
|
|---|---|
1 |
X (Close) — Closes the Pilot sidebar. |
2 |
Locked heading — Indicates the current course in degrees. |
3 |
< –1° — Selecting will adjust your course by minus 1°. |
4 |
> +1° — Selecting will adjust your course by plus 1°. |
5 |
<< –10° — Selecting will adjust your course by minus 10°. |
6 |
>> +10° — Selecting will adjust your course by plus 10°. |
7 |
Steer to NavSteer to Nav — Enables you to engage the autopilot in Navigation (Track) mode. Note Steer to Nav mode will only be enabled when there is Active navigation. |
8 |
Steer to WindSteer to Wind — Enables you to engage the autopilot in Steer to Wind (Wind vane) mode. Note Steer to Wind mode will only be available if Sailing was selected as the display’s Boating activity during the initial start up wizard.. |
9 |
Disengage — Allows you to disengage the autopilot and return to Standby (manual control). |
10 |
Pilot statusAutopilotStatus — Provides the status of the autopilot. |
11 |
Rudder barRudder bar — Provides visual indication of rudder position. |
