Battery / Fuel range
A range ring is available in the Chart app which indicates the maximum range that can be achieved when travelling in a straight line.
If Electric has been selected as the Propulsion system, Battery range will be provided instead of Fuel range.
The range ring provides an estimate only, and should not be relied upon for accurate navigation.
Battery rangeFuel rangeChart appFuel range ringBattery range ringThe indicated range is an estimate based on data received from your propulsion management system, or from the Fuel manager. The range provided is an approximate value only, and does not take into account conditions such as sea state, wind. or tidal currents.
The Fuel range ring or Battery range ring is enabled and disabled from the Vessel details pop-over menu.

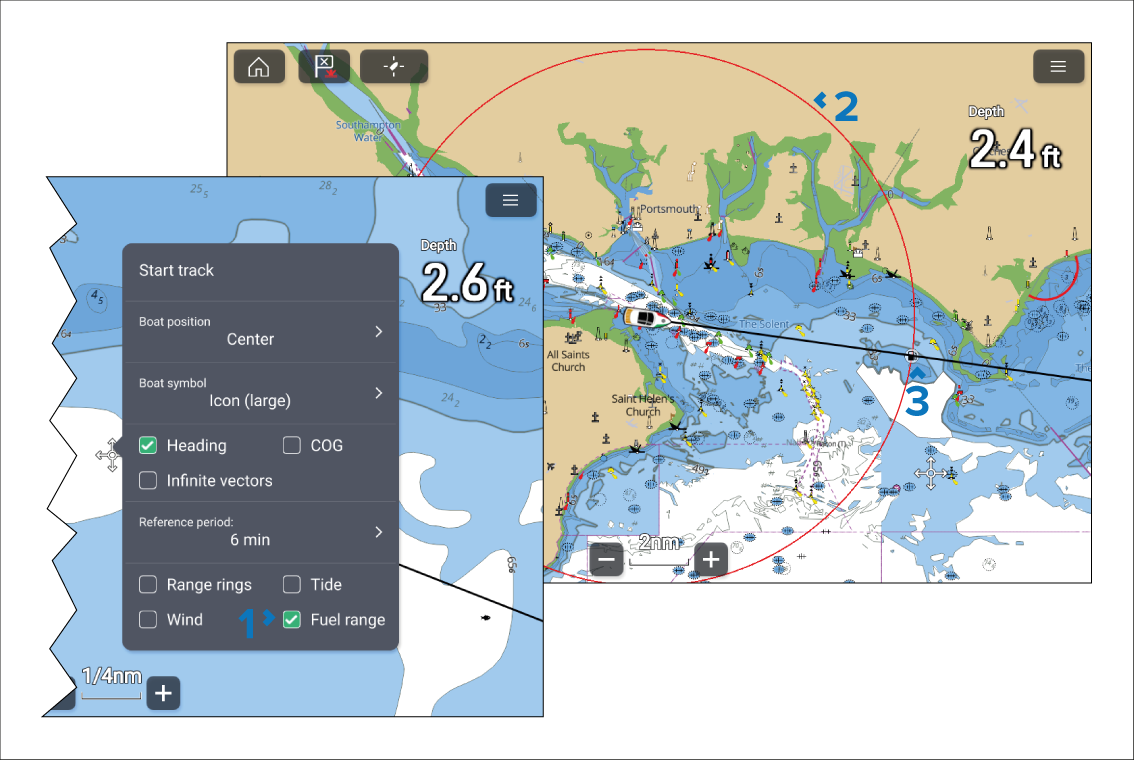

Fuel range ring / Battery range ring option in the Vessel details pop-over menu. .
Fuel range ring / Battery range ring.
A Fuel or Battery symbol is displayed at the point where your vessel’s current heading and your estimated range intersect.
When the vessel is close to either the North or South poles, the circle cannot be drawn above or below the chart area limits, and will instead appear as an arc.
