AIS target context menu

When an AIS target is selected in the Chart app, the AIS target context menu is displayed.

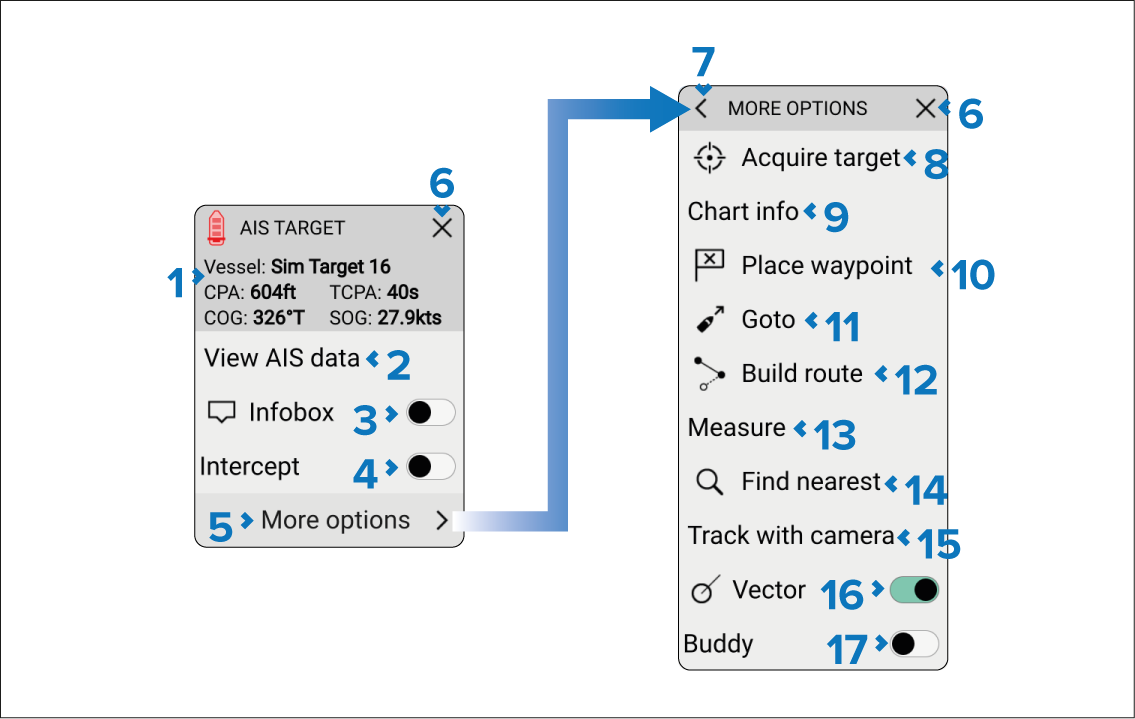

AIS targetContext menuThe AIS target context menu includes the following information and settings:

  1. AIS data — The following AIS data is displayed:

    • Vessel name.

    • CPA (Closest Point of Approach) and TCPA (Time to Closest Point of Approach).

    • Course (COG or relative course).

    • Speed (SOG or relative speed).

  2. View AIS data — View full page AIS data report.

  3. Infobox — Enable and disable onscreen display of AIS data next to the target symbol.

  4. Intercept — Enable and disable target interception.

  5. More options — View further options.

  6. X (close)

    — Close the context menu.

  7. < (back arrow) — Go back to first context menu.

  8. Acquire target — Acquire the AIS target as a Radar target.

  9. Chart info — View details of any nearby objects.

  10. Place waypoint — Create a new waypoint at the target’s current location.

  11. Goto — Perform a goto.

  12. Build route — Create a route.

  13. Measure — Use or remove the ruler tool.

  14. Find nearest — Search for nearby point of interest.

  15. Track with camera — Track the target with a compatible PTZ (Pan Tilt Zoom) camera.

  16. Vector — Enable and disable target vectors.

  17. Buddy — Add or remove target from Buddy list.

First responder

When the display is configured using the First Responder activity, the following additional data and options will be available:

  • AIS data — Boat type, Status, Bearing, Range, Intcpt (Intercept time).

  • Designate TOI.

  • Send message.
