Radar target context menu

When an acquired Radar target is selected in the Radar app the Radar target context menu is displayed.

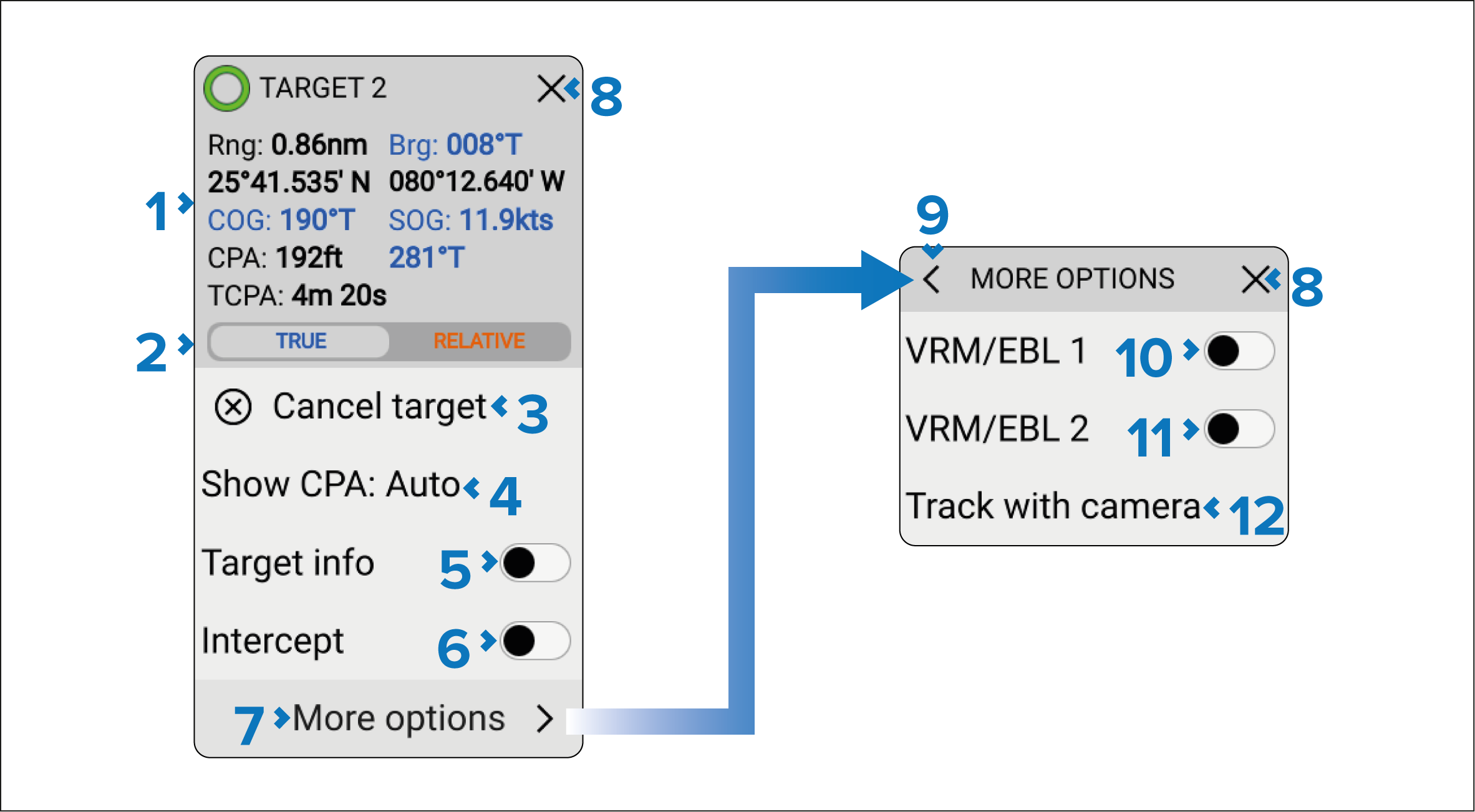

Radar targetContext menuThe Radar target context menu includes the following information and settings:

1. Target data — The following data is displayed:

   • Rng(Range).

   • Brg (Bearing).

   • Latitude and Longitude.

   • COG (Course Over Ground)/rCrs (Relative course.

   • SOG (Speed Over Ground)/rSpd (Relative speed).

   • CPA (Closest Point of Approach).

   • TCPA (Time to Closest Point of Approach).

2. True/Relative — Switches Bearing, Course and Speed data between True (COG/SOG) and Relative (rCrs/rSpd) for the selected target.

3. Cancel target — Delete the selected Radar target.

4. Show CPA: —

5. Target info — Enable and disable onscreen display of data next to the target symbol.

6. Intercept — Enable and disable target interception.

7. More options — View further options.

8. X (close)

   — Close the context menu.

9. < (back arrow) — Go back to first context menu.

10. VRM/EBL 1 — Enable and disable VRM/EBL 1.

11. VRM/EBL 2 — Enable and disable VRM/EBL 2.

12. Track with camera — Track the target with a compatible PTZ camera.

First responder

When the MFD/chartplotter is configured using the First Responder activity, the following additional data and options will be available:

• AIS data — Boat type, Status, Intcpt (Intercept time).

• Designate TOI.

• Send message.
