Mounting without the bracket

Follow the steps below to mount a Master system assembly and Remote system assemblies that include less than 4 input / output modules..

Important

  • To help prevent water ingress, systems must be mounted vertically with the connectors facing down.

  • Use 4 x fixings, not supplied, appropriate for the intended mounting surface. The fixings should be appropriate width for the 5 mm (0.2 in) module mounting holes.

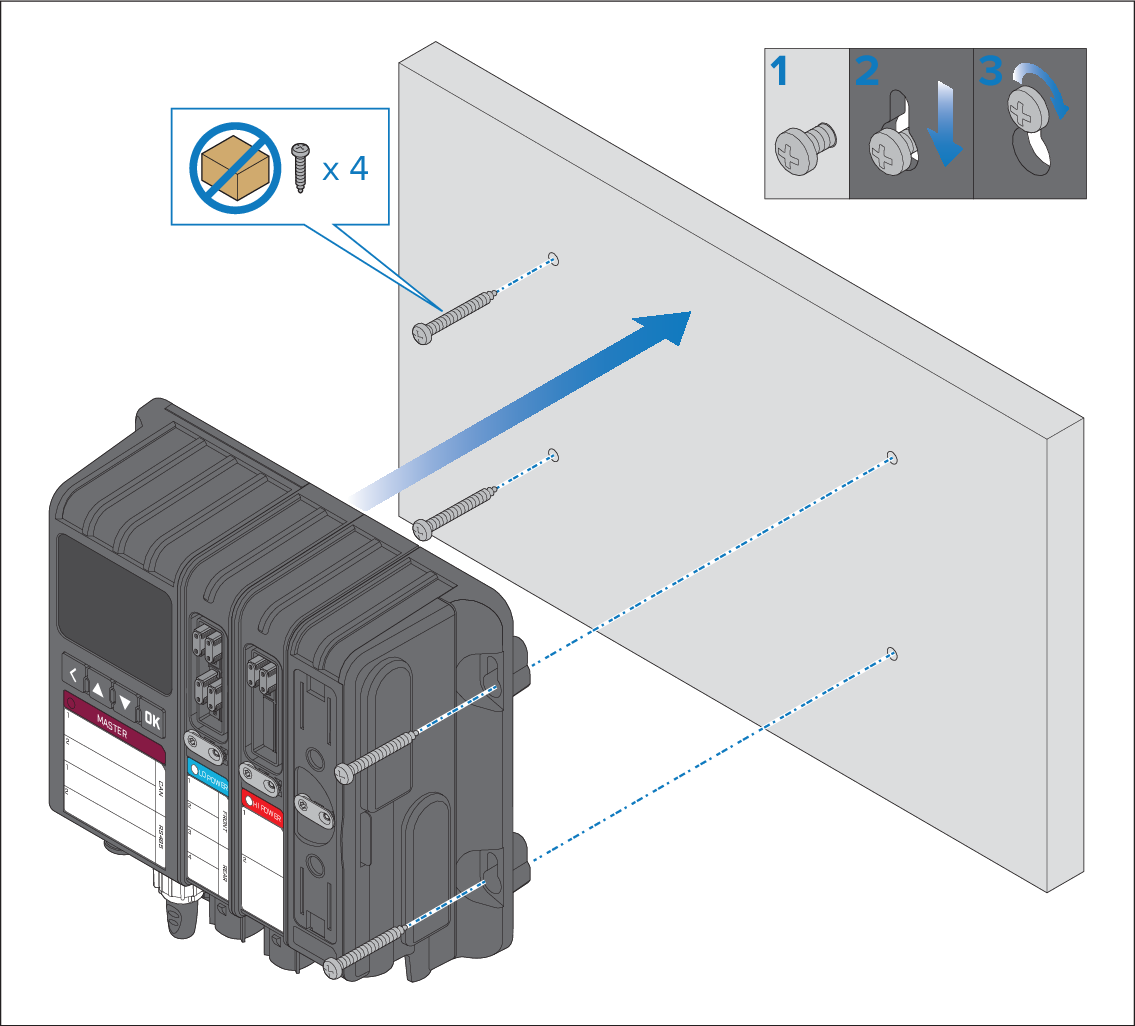

Mounting
  1. Ensure that the mounting location requirements have been met; refer to: Location requirements
  2. Hold the assembly in place at the intended location.
  3. Mark the location of the 2 holes on the Master module or Remote module (the holes on the left).
  4. Place the assembly to one side.
  5. Drill the 2 holes in the mounting surface.
  6. Screw in 2 x fixings approximately half way.
  7. Place the assembly over the 2 fixings and move down to the locked position.
  8. Use a spirit level yo ensure the assembly is level and then mark the position of the 2 mounting holes in the Power supply module.
  9. Remove the assembly and drill the 2 holes in the mounting surface.
  10. Screw in the remaining 2 x fixings approximately half way.
  11. Place the assembly over all 4 fixings and move the assembly down into the locked position.
  12. Fully tighten the 4 fixings.
