CCU — dimensions

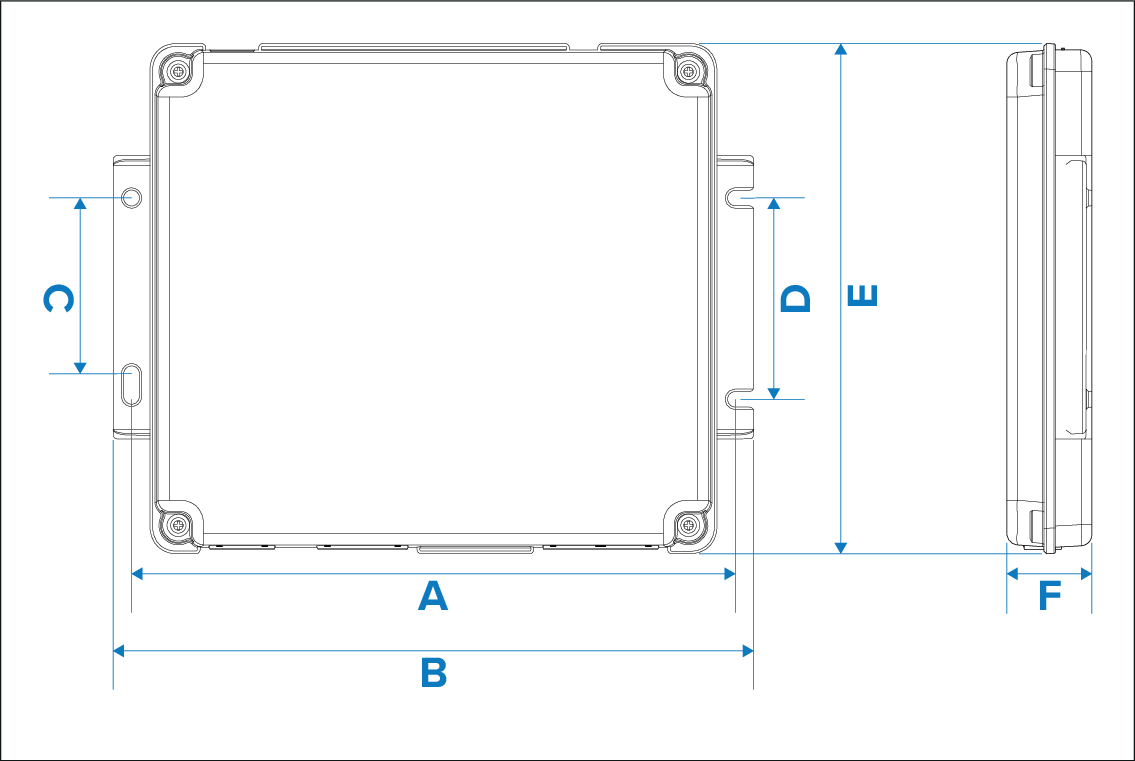

The dimensions of the Camera Conversion Unit (CCU) are shown below:
CCUDimensionsDimensionsCCU
Item |
Description |
|---|---|
A |
213 mm (8.39 in). |
B |
226.00 mm (8.90 in). |
C |
62.00 mm (2.44 in). |
D |
71.00 mm (2.80 in). |
E |
180.00 mm (7.09 in). |
F |
30.00 mm (1.18 in). |
