SVM camera — dimensions

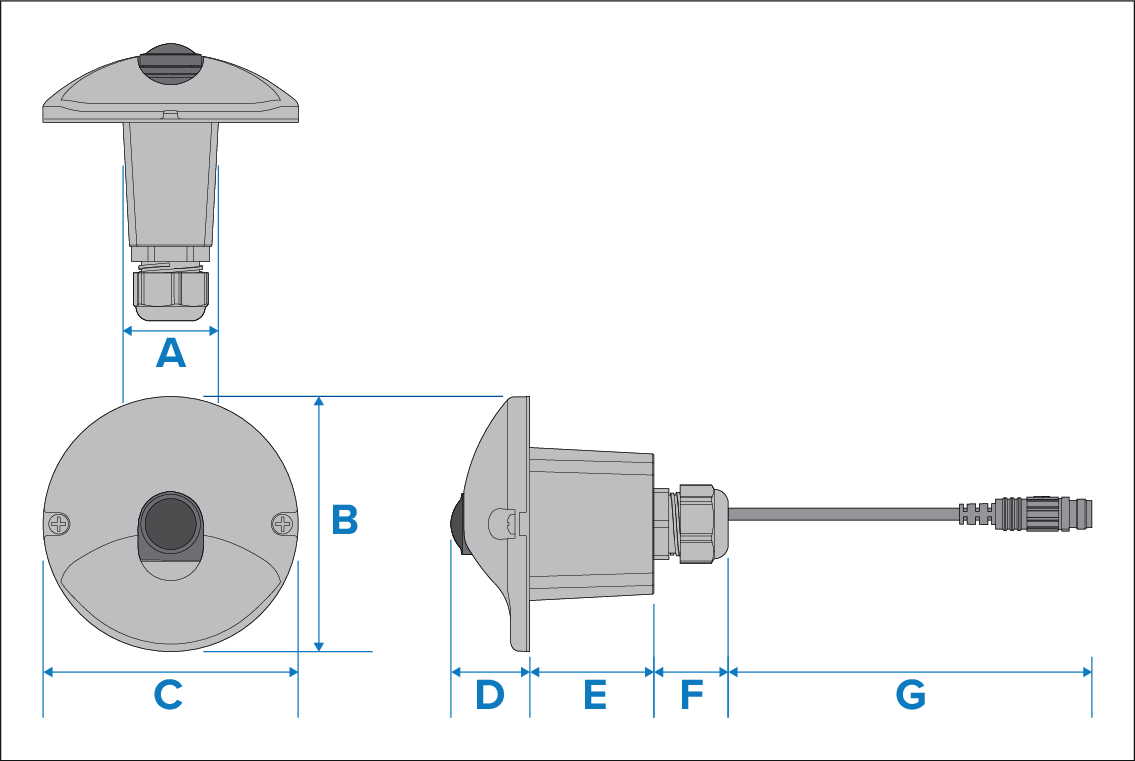

The dimensions of the Surround View Monitor (SVM) camera are shown below:
CameraDimensionsDimensionsCamera
Item |
Description |
|---|---|
A |
33.60 mm (1.32 in). |
B |
90.00 mm (3.54 in). |
C |
90.00 mm (3.54 in). |
D |
27.78 mm ( 1.09 in). |
E |
43.80 mm (1.72 in). |
F |
26.23 mm (1.03 in). |
G |
265.55 mm (10.45 in). |
