ORU — dimensions

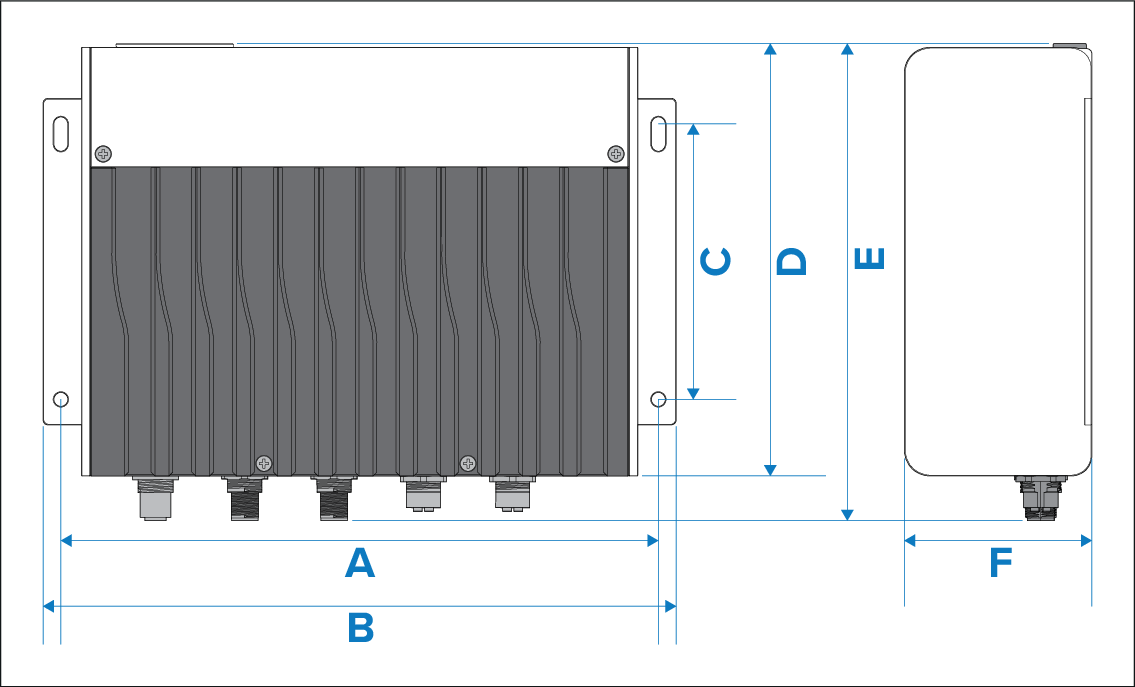

The dimensions of the Object Recognition Unit (ORU) are shown below:
ORUDimensionsDimensionsORU
Item |
Description |
|---|---|
A |
246.20 mm (9.69 in). |
B |
261.20 mm (10.28 in). |
C |
108.00 mm (4.25 in). |
D |
180.50 mm (7.11 in). |
E |
188.00 mm (7.40 in). |
F |
75.00 mm (2.95 in). |
