CCU — connections overview

Connectors and suitable connections for the NeuBoat Dock Camera Conversion Unit (CCU).

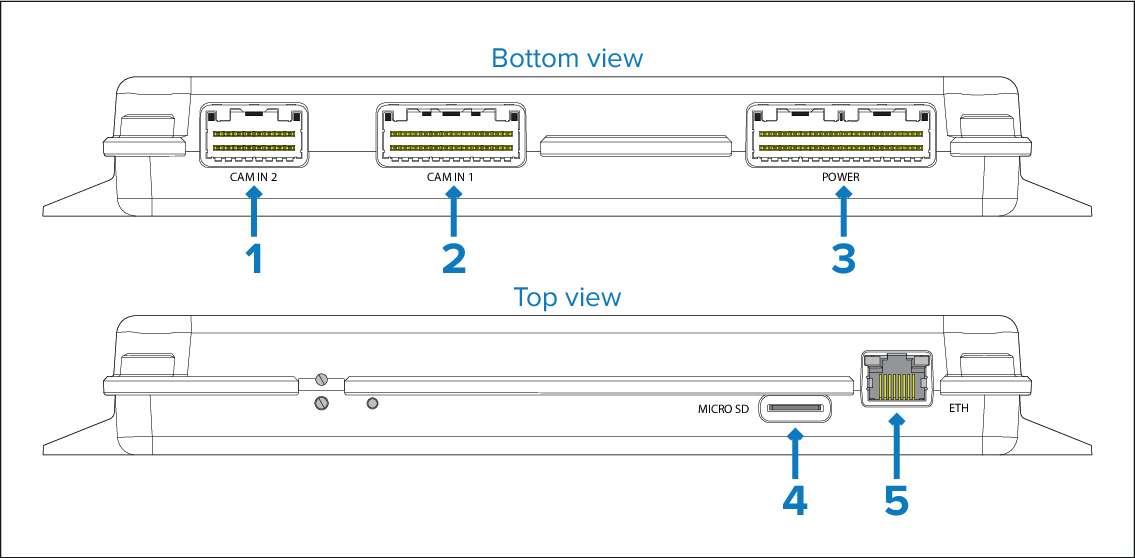

Connections overviewCCUCCUConnections overview

Connector

Suitable connections

1) CAM IN 2 (Camera input 2)

Connects to:

  • SVM cameras 4-5.

CCU camera input cable 2 (used to connect SVM cameras 4-5 to the CCU); 200 mm (7.87 in) supplied.

2) CAM IN 1 (Camera input 1)

Connects to:

  • SVM cameras 0-3.

CCU camera input cable 1 (used to connect SVM cameras 0-3 to the CCU); 200 mm (7.87 in) supplied.

3) POWER

Connects to:

  • 12 / 24 V dc power supply.

CCU power cable; 1 m (3.3 ft) supplied.

4) MicroSD (MicroSD card reader)

  • MicroSD card (for software update purposes).

MicroSD card, available separately.

5) ETH (Ethernet)

Connects to:

  • (1) Object Recognition Unit (ORU).

  • (2) RNS-8 Network switch

    .

  • CCU to ORU cable (used to connect the CCU to the ORU), 15 m (49.21 ft) supplied or 25 m (82.02 ft) available separately.

  • CCU to RayNet cable (used to connect the CCU to the RNS-8 network switch); 15 m (49.21 ft) or 25 m (82.02 ft) available separately.
Note

  • (1) This direct connection is required for Basic systems only. For more information, refer to: Basic system

  • (2) This direct connection is required for Expanded systems only. For more information, refer to: Expanded system
