SVM camera — connections overview

Connectors and suitable connections for the NeuBoat Dock SVM camera.

Connections overviewSVM camera

Connector	Suitable connections

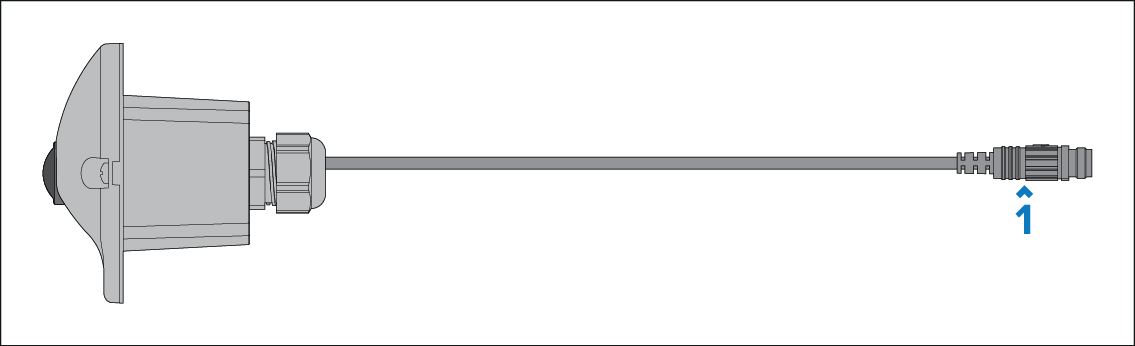

1) CAM (Camera) (includes pre-fitted cable, 500 mm (19.69 in)). Connects to: Camera Conversion Unit (CCU).	SVM camera to CCU extension cable; 15 m (49.21 ft) supplied or 20 m (65.62 ft) available separately.

Connector

Suitable connections

1) CAM (Camera) (includes pre-fitted cable, 500 mm (19.69 in)).

Connects to:

SVM camera to CCU extension cable; 15 m (49.21 ft) supplied or 20 m (65.62 ft) available separately.

Note

A maximum of 6 SVM cameras can be connected to a NeuBoat Dock system.
