ORU — connections overview

Connectors and suitable connections for the NeuBoat Dock Object Recognition Unit (ORU).

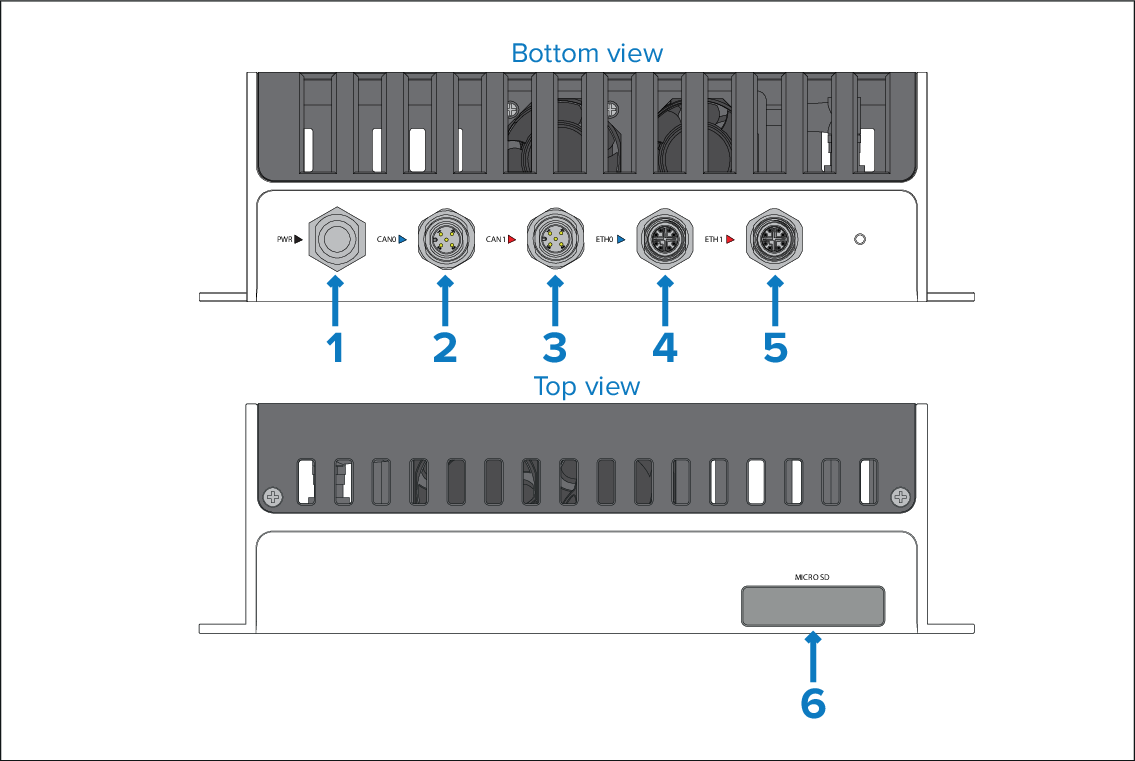

Connections overviewORU

Connector

Suitable connections

1) PWR (Power)

Connects to:

  • 12 / 24 V dc power supply.

ORU power cable; 2 m (6.56 ft) (supplied).

2) CAN0 (Control Area Network 0)

This connection is not currently supported.

Not applicable — this connection is not currently supported.

3) CAN1 (Control Area Network 1)

This connection is not currently supported.

Not applicable — this connection is not currently supported.

4) ETH0 (Ethernet 0)

Connects to:

  • (1) Camera Conversion Unit (CCU)

  • (2) RNS-8 Network switch.

  • CCU to ORU cable (used to connect the CCU to the ORU); 15 m (49.21 ft) supplied or 25 m (82.02 ft) available separately.

  • ORU to RayNet cable (used to connect the ORU to an RNS-8 network switch or a compatible multifunction display); 25 m (82.02 ft) supplied or 50 m (164.04 ft) available separately.

5) ETH1 (Ethernet 1)

Connects to:

  • Compatible multifunction display (MFD).

ORU to RayNet cable (used to connect the ORU to an RNS-8 network switch or a compatible multifunction display); 25 m (82.02 ft) supplied or 50 m (164.04 ft), available separately.

6) MicroSD (MicroSD card reader)

  • MicroSD card (for software updates).

MicroSD card, available separately.
Note

  • (1) This direct connection is required for Basic systems only. For more information, refer to: Basic system

  • (2) This direct connection is required for Expanded systems only. For more information, refer to: Expanded system
