Mast cable routing

When routing the cable inside the mast, the mast cable exit can be located under the mounting plate (the mounting plates includes a cable recess for this purpose) or on the side of the mast.

To keep the size of any holes that need to be drilled for cable routing to a minimum, route the mast cable from the transducer location using the bare wire end first.

• Ensure sufficient slack at the transducer end so that the wind transducer can be disconnected if necessary.

• When drilling routing holes, ensure they are large enough to accommodate the mast cable (which has an approximately diameter of 5 mm (0.20 in)).

• When drilling routing holes, ensure there are no rough edges or burrs before routing any cables.

• The cable should be secured at regular intervals using cable clips, so that the cable is NOT hanging and the cable’s weight is supported.

• The cable should be secured inside of a conduit, so that the cable is protected damage.

• Excess cable can be cut once the cable has been routed to the gateway.

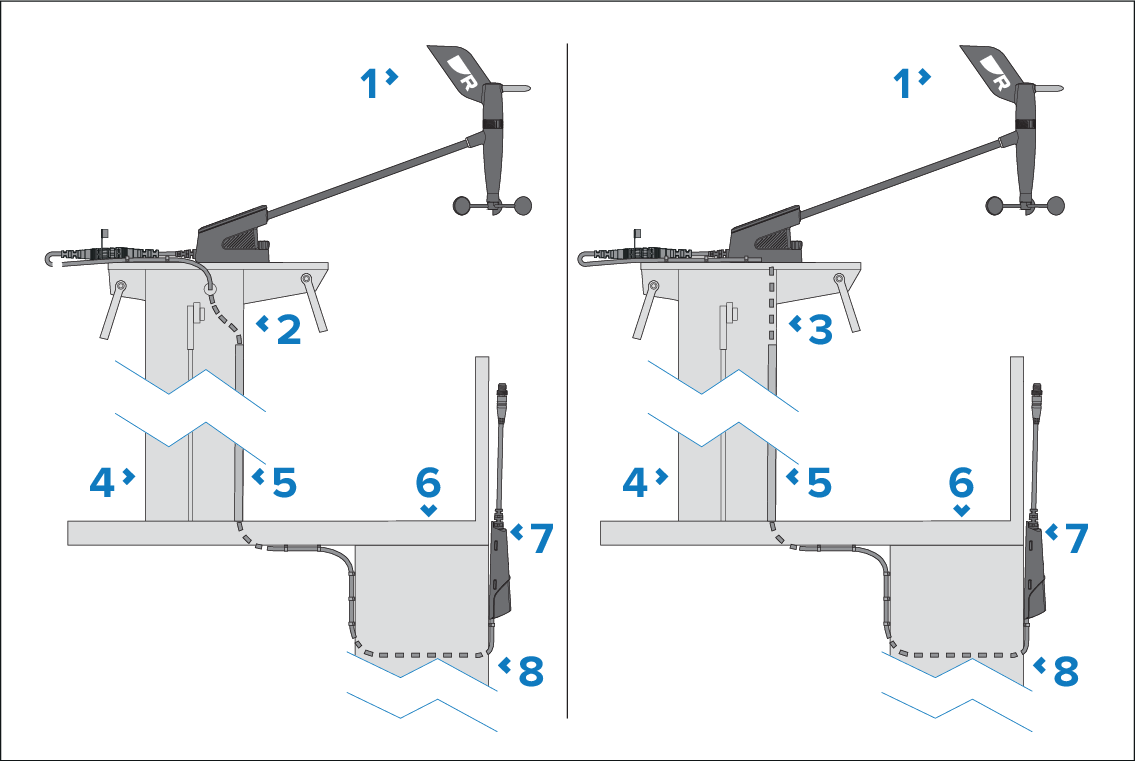

1. RSW-Wired Smart wind transducer.

2. Cable routing internally (side mast cable exit).

3. Cable routing internally (mounting plate cable exit).

4. Mast.

5. Cable conduit.

6. Deck.

7. Gateway.

8. Bulkhead.
