Connecting the gateway to the network

The gateway must be connected to a SeaTalk NG / NMEA 2000 network.

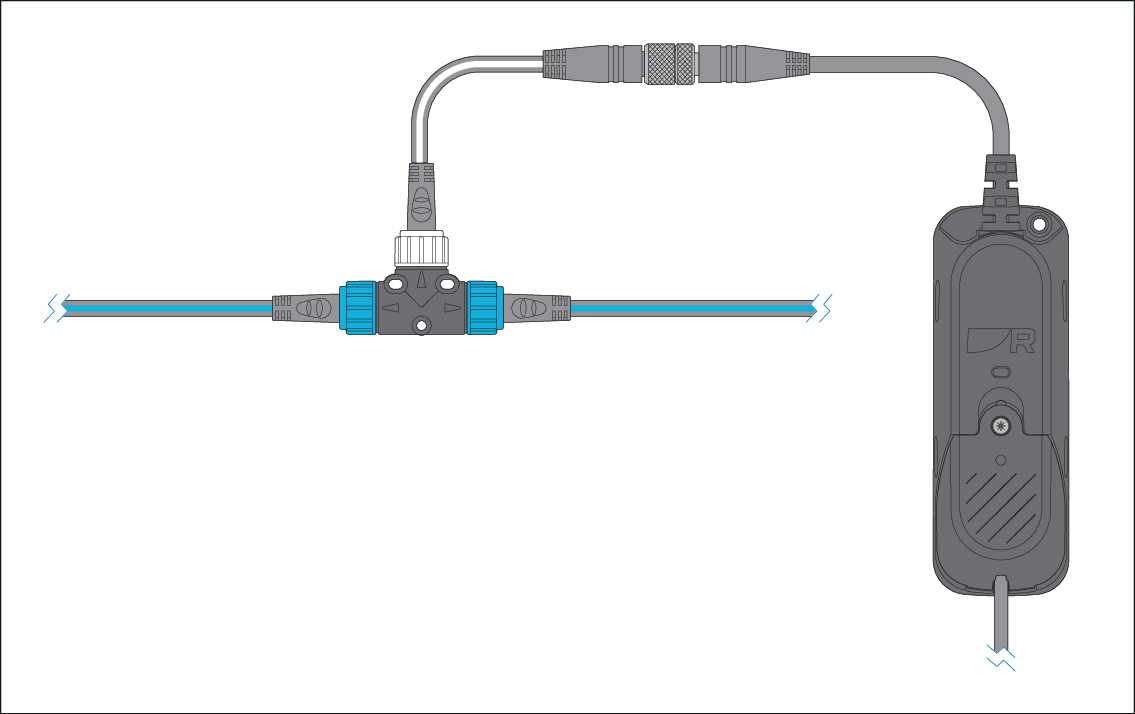

ConnectionsGateway SeaTalk NGDeviceNet

  1. Connect the gateway’s DeviceNet connector to the DeviceNet connector on the supplied SeaTalk NG to DeviceNet adaptor cable.
  2. Connect the SeaTalk NG connector on the supplied SeaTalk NG to DeviceNet adaptor cable to an available spur connection on the SeaTalk NG network.

Alternatively, connect the gateway’s DeviceNet connector directly to an available DeviceNet spur on a DeviceNet network.
