Preparing the mounting surface — surface mounting

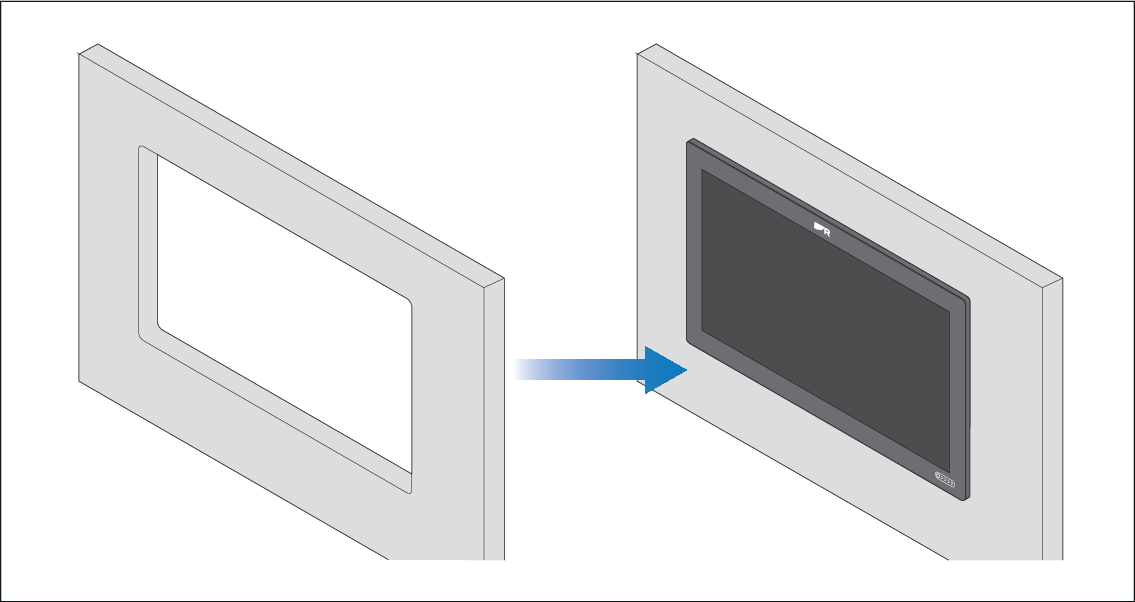

Surface mounting requires one cut out hole. When the display is surface mounted the glass/bezel will protrude from the mounting surface.

Note

The following procedure is for preparing the mounting surface for surface mount installations. For flush mounting details refer to: Preparing the mounting surface — flush mounting

Important

Before preparing the mounting surface ensure that:

  • Your selected location meets the location requirements. For details refer to: Location requirements

  • You have identified cable connections and the route that the cables will take.

Installation Surface mountingSurface mounting

  1. Mark the cutout line on the mounting surface, as identified on the supplied mounting template.
  2. Use a drill and an appropriate size drill bit or hole cutter to cut out the corners of the Cutout line.

    The corner diameters for the displays are:

    • 15.40 mm (0.61 in) — 16”, 19” and 24” displays.

    • 13.5 mm (0.53 in) — 22” displays.

  3. Use a jigsaw or similar cutting tool to cut out the remainder of the cutout area.
  4. Use a half round file and/or sandpaper to smooth and rough edges or burs on the cutout hole.
