Analog video (Video 1) connection

Analog video feeds from sources such as a Thermal camera or Security camera can be connected to your display by connecting the device to the BNC connector on the Video in/Alarm out cable accessory (part number: A80235). which is connected to the ALARM | VIDEO 1 connector located on the rear of the display. The video feed can be viewed using the Video app.

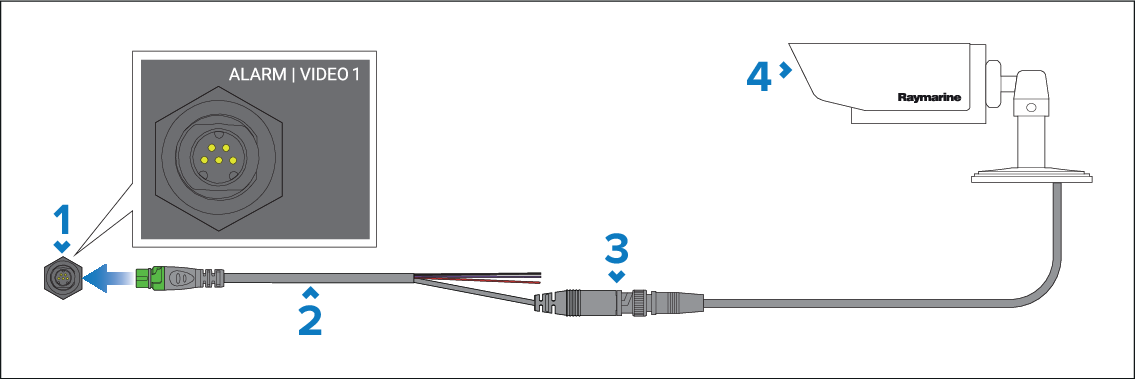

ConnectionsAnalog video Video 1Analog cameraVideo 1Video connection

  1. Display’s ALARM | VIDEO 1 connector.

  2. Video in/Alarm out cable (part number: A80235) — not supplied.

  3. (Video 1) Analog video BNC connector.

  4. Analog video device.

For installation details, refer to the documentation provided with your analog video device.

Note

  • VIDEO 1 is the secondary video connection and is shared with HDMI IN. HDMI IN and VIDEO 1 cannot be used at the same time. If devices are connected to both connections then the HDMI IN connection will take priority.

  • The video feeds connected to HDMI IN and VIDEO 1 are NOT streamed over ethernet to networked displays.
