Traditional transducer connection
Traditional transducers can be connected to the display’s 11-pin 1kW Transducer connection using the 11-pin to 8-pin adaptor cable (part number: A80496).

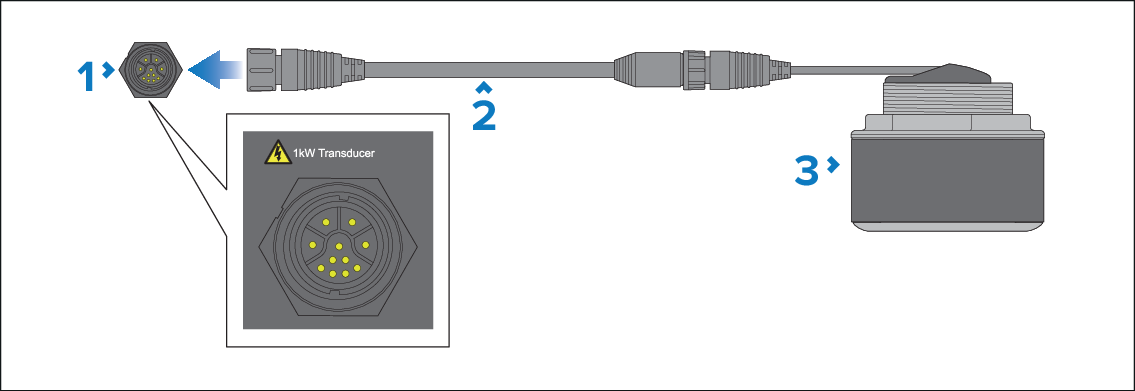

Connections Transducer Traditional transducers
Display’s 1kW Transducer 11–pin connector.
11-pin to 8-pin adaptor cable (part number: A80496).
Traditional transducer.
For a list of compatible traditional transducers refer to: Traditional transducers
