CHIRP transducer connection

CHIRP transducers can be connected directly to the display’s 11-pin 1kW Transducer connection. B75 & B175 transducers require an operation cable (part number: A80328).

Connections Transducer CHIRPtransducers

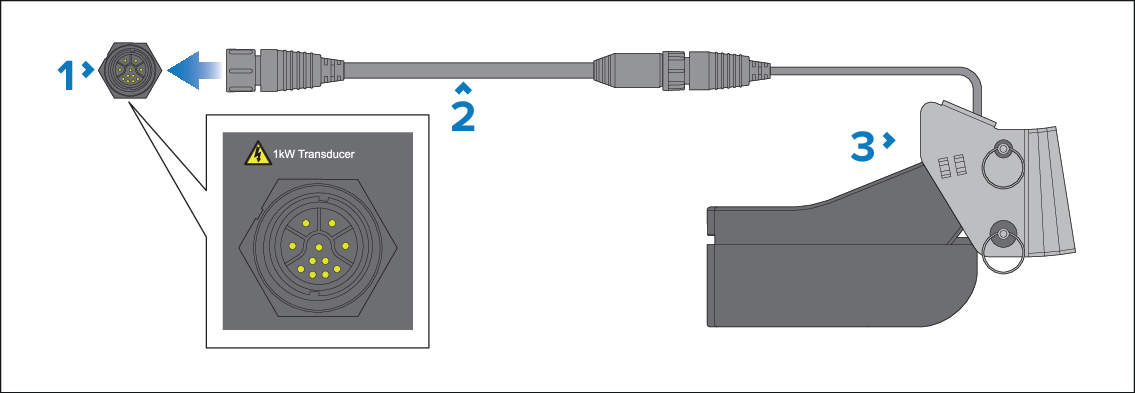

Figure 1. Example CHIRP transducer connection

  1. Display’s 1kW Transducer 11–pin connector.

  2. Operation cable (part number: A80328) is required for B75 & B175 transducers.

  3. CHIRP transducer.

For a list of compatible CHIRP transducers refer to: CHIRP transducers
