Traditional transducers
Traditional transducers require an adapter cable (part number: A80496), and connect to the 11-pin 1kW transducer connector.

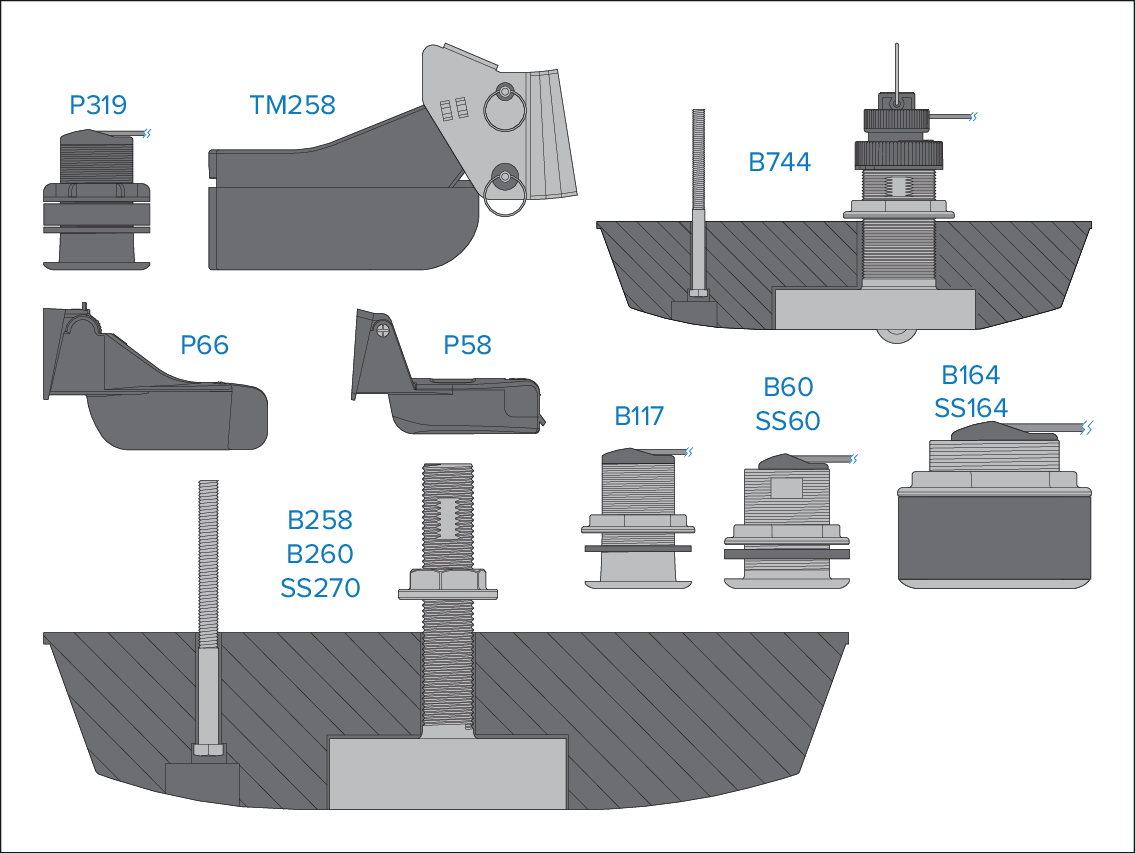

Transom mount transducers
| Part number | Transducer description |
|---|---|
E66084 |
TM258 plastic transducer |
A80566 |
P58 plastic transducer |
E66054 |
P66 plastic transducer |
Thru-hull mount transducers
| Part number | Transducer description |
|---|---|
E66013 |
P319 plastic transducer |
E66014 |
B117 bronze transducer |
E66086 |
B60 12° angled element bronze transducer |
E66085 |
B60 20° angled element bronze transducer |
A80568 |
SS60 0° angled element stainless steel transducer |
A80569 |
SS60 12° angled element stainless steel transducer |
A80570 |
SS60 20° angled element stainless steel transducer |
A102137 |
B164 0° angled element bronze transducer |
A102112 |
B164 12° angled element bronze transducer |
A102113 |
B164 20° angled element bronze transducer |
A80451 |
SS164 0° angled element stainless steel transducer |
A66098 |
SS164 12° angled element stainless steel transducer |
A66099 |
SS164 20° angled element stainless steel transducer |
A66091 |
B744V bronze transducer |
A66092 |
B744VL bronze transducer |
E66082 |
B258 bronze transducer |
A102121 |
SS270W bronze transducer |
E66079 |
B260 bronze transducer |

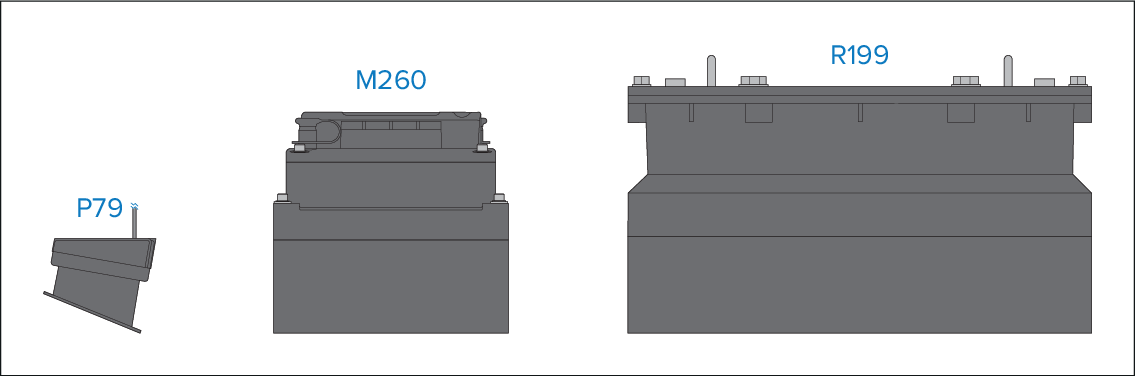

In-hull mount transducers
| Part number | Transducer description |
|---|---|
E66008 |
P79 plastic transducer |
A66089 |
M260 plastic transducer |
E66076 |
R199 plastic transducer |
