RealVision transducer connection

RealVision™ 3D and RealVision™ Max 3D transducers can be connected directly to the display’s 25-pin RV/RVM Transducer connection using the cable(s) supplied with the transducers.

Connections Transducer RealVision™ 3D transducersRealVision™ Max 3D transducers

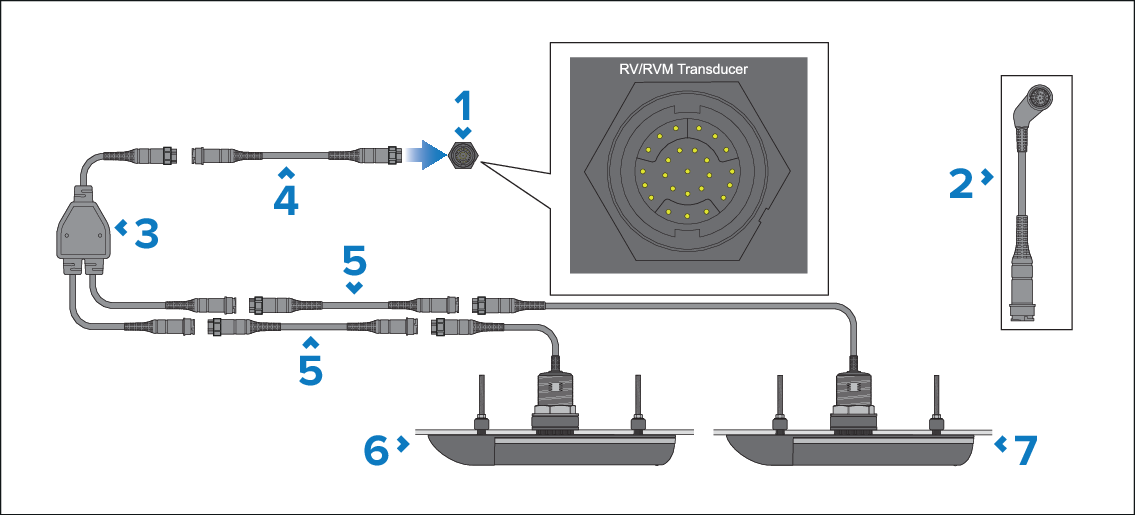

Figure 1. Example — RealVision Max 3D split pair transducer connections

  1. Display’s RV/RVM Transducer 25-pin connector.

  2. Optional right angled adaptor (part number: A80515) supplied separately (used to reduce the space required behind display).

  3. ‘Y’ cable (supplied with split pair transducer packs)

  4. 8 m (26.2 ft) extension cable (supplied with split pair transducer packs)

  5. Optional extension cables can be fitted between the transducer and ‘Y’ cable if required, or between supplied extension cable and display.

  6. Transducer, e.g.: RVM-412 Port.

  7. Transducer, e.g.: RVM-412 Starboard.

For a list of compatible RealVision™ Max 3D transducers refer to: RealVision™ Max 3D transducers

For a list of compatible RealVision™ 3D transducers refer to: RealVision™ 3D transducers
