RealVision Max 3D transducers

  • RealVision™ Max 3D transducers connect directly to the 25-pin RV/RVM transducer connector.

  • RealVision™ Max 3D split-pair transducers are supplied with a Y-cable (part number: A80478) and extension cable (part number: A80477) to connect both transducers to the 25-pin RV/RVM transducer connector.

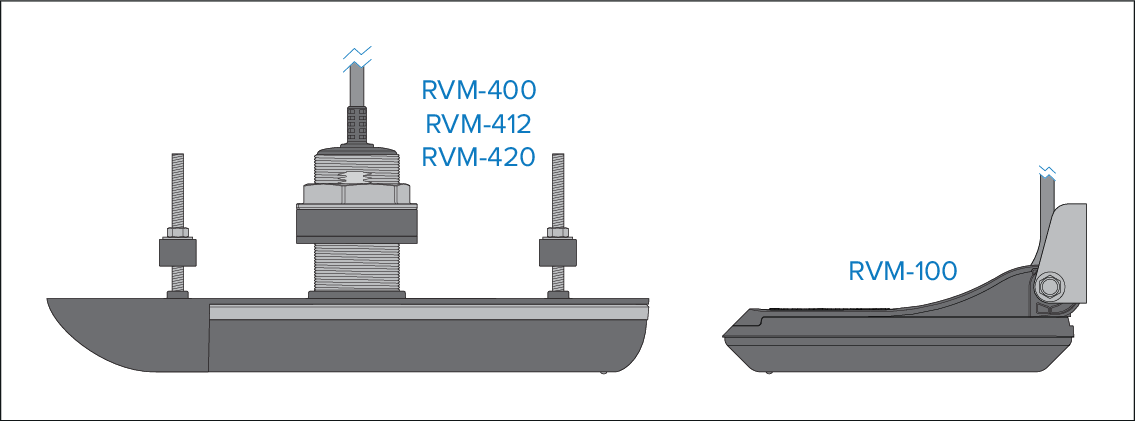

Transom mount transducers

Part number Transducer description

A80703

RVM-100 RealVision™ Max 3D plastic transducer

Thru-hull mount transducers

Part number Transducer description

A80704

RVM-400 RealVision™ Max 3D stainless steel 0° transducer

T70543:

A80705

A80706

RVM-412P / RVM-412S RealVision™ Max 3D stainless steel 12° split-pair transducers

T70544:

A80707

A80708

RVM-420P / RVM-420S RealVision™ Max 3D stainless steel 20° split-pair transducers
