RealVision 3D transducers
RealVision™ Max 3D transducers connect directly to the 25-pin RV/RVM transducer connector.
RealVision™ Max 3D split-pair transducers are supplied with a Y-cable (part number: A80478) and extension cable (part number: A80477) to connect both transducers to the 25-pin RV/RVM transducer connector.

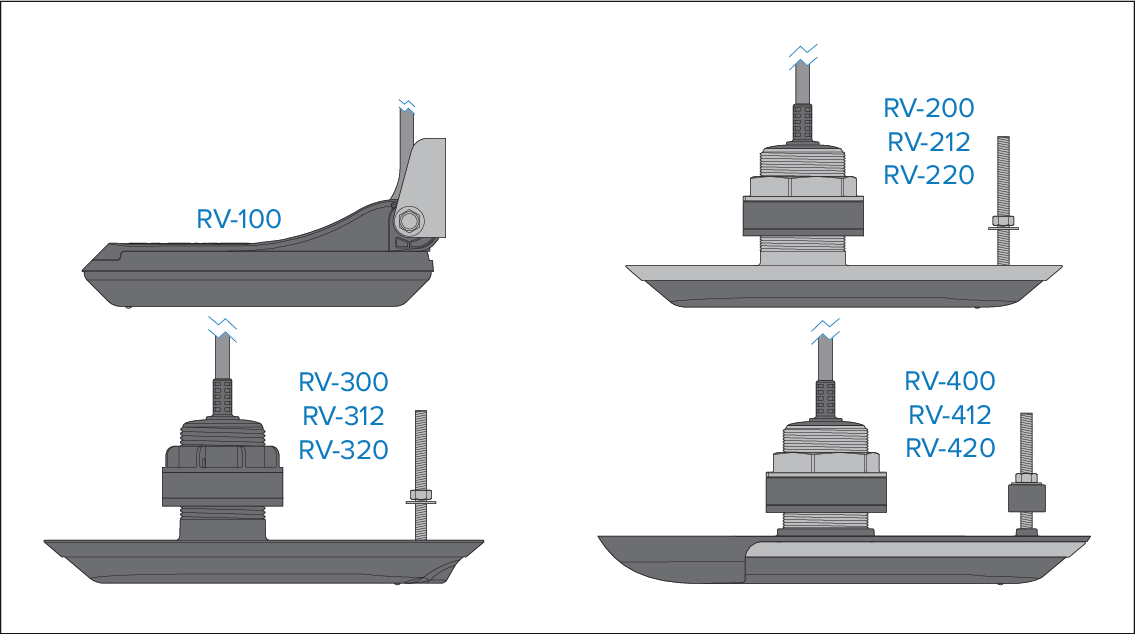

Transom mount transducers
| Part number | Transducer description |
|---|---|
A80464 |
RV-100 RealVision™ 3D plastic transducer |
Thru-hull mount transducers
| Part number | Transducer description |
|---|---|
A80465 |
RV-200 RealVision™ 3D bronze 0° transducer |
T70318: A80466 A80467 |
RV-212P / RV-212S RealVision™ 3D bronze 12° split-pair transducers |
T70319: A80468 A80469 |
RV-220P / RV-220S RealVision™ 3D bronze 20° split-pair transducers |
A80470 |
RV-300 RealVision™ 3D plastic 0° transducer |
T70320: A80471 A80472 |
RV-312P / RV-312S RealVision™ 3D plastic 12° split-pair transducers |
T70321: A80473 A80474 |
RV-320P / RV-320S RealVision™ 3D plastic 20° split-pair transducers |
A80615 |
RV-400 RealVision™ 3D stainless steel 0° transducer |
T70450: A80616 A80617 |
RV-412P / RV-412S RealVision™ 3D stainless steel 12° split-pair transducers |
T70451: A80618 A80619 |
RV-420P / RV-420S RealVision™ 3D stainless steel 20° split-pair transducers |
