SideVision transducers

    87443 - Rev 6 - en-US

    SideVision transducers

    SideVision™ transducers require an adapter cable (part number: A80490), and connect to the 25-pin RV/RVM transducer connector.

    Transom mount transducers

    Part number Transducer description

    A80281

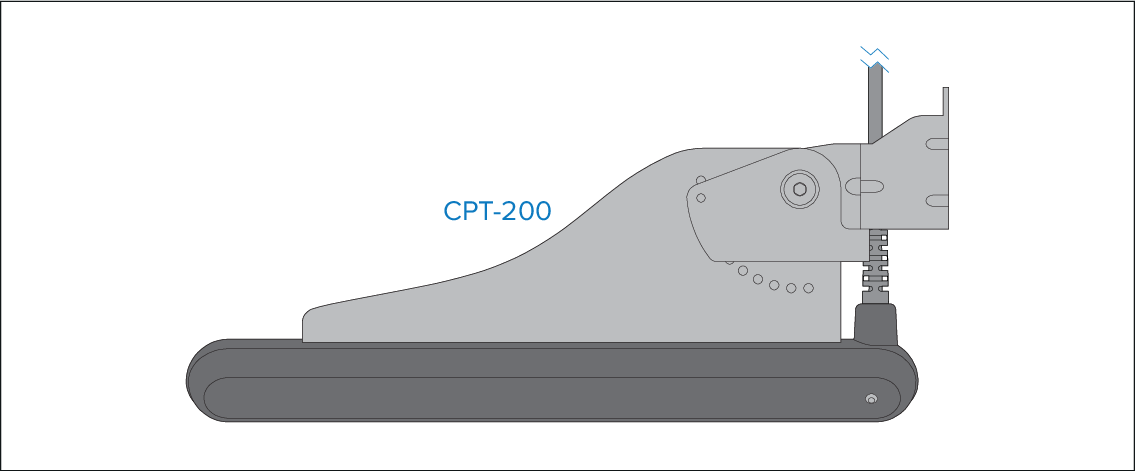

    CPT-200 SideVision™ stainless steel transducer
    Parent topic: Axiom 2 Pro RVM variant — compatible transducers
    Previous topic: RealVision 3D transducers
    Next topic: DownVision transducers
