Mounting options

Axiom® 2 Pro displays can be surface, flush, or bracket mounted.

InstallationMounting options

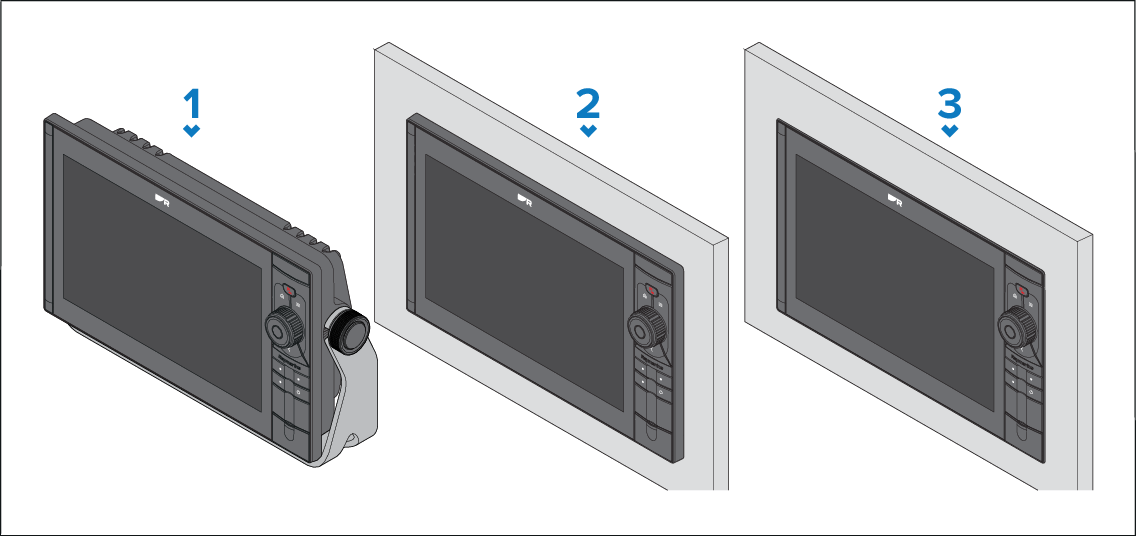

  1. Trunnion bracket mounting (used for mounting upright on a surface, or can be used for mounting overhead). For installation details, refer to: Trunnion mounting

  2. Surface mounting (when surface mounted, the display bezel will protrude from the mounting surface). For installation details, refer to: Surface mounting

  3. Flush mounting (when flush mounted, the front glass of the display will sit flush with the mounting surface). For installation details, refer to: Flush mounting

Legacy MFD adaptor plates are also available to enable you to easily swap out older displays for new Axiom® 2 Pro displays. For a list of available adaptors, refer to: Legacy adaptor plates

Note

Replacing a trunnion-mounted or surface-mounted Axiom® Pro display with a new Axiom® 2 Pro display, is a straight swap (with the exception of the power cable), with no hole drilling or cutting required.
