Replacing the lower keypad

The display is supplied with the pilot control lower keypad fitted. If you will not be using the display as an autopilot controller, you can swap the pilot control keypad with the user-configurable lower keypad supplied with the display.

Important

Do NOT use metallic or sharp objects to remove the keypad or infill piece, as this could damage the keypad and/or display.

KeypadPilot keypadAutopilot keypad

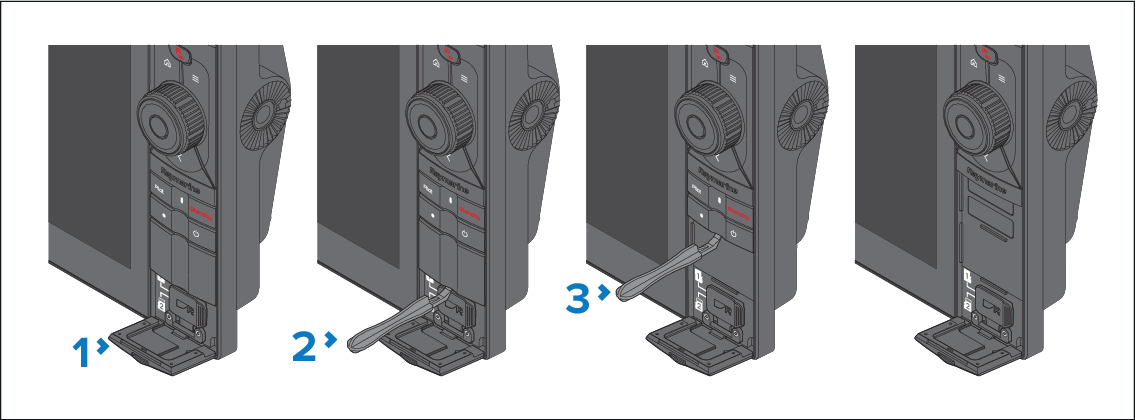

1. Open the card reader door.
2. Axiom 2 Pro 12 and Axiom 2 Pro 16 only — Using a plastic pry tool, lever the infill piece located below the lower keypad against the small plastic protrusion to release it from the display.
3. Using a plastic pry tool, lever the bottom of the keypad against the small plastic protrusion to release the keypad from the display.

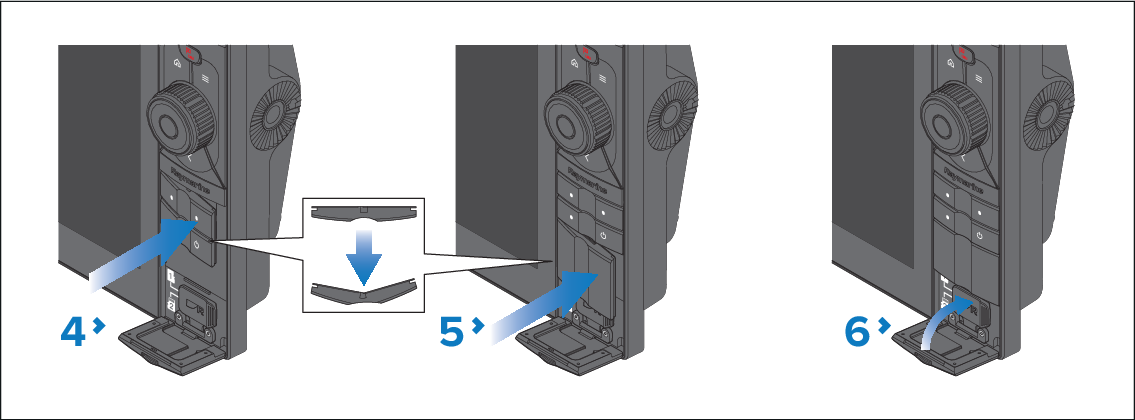

4. Insert one edge of the replacement keypad and then bend the keypad slightly in the middle to allow the other edge to be inserted into the opposite side.
5. Axiom 2 Pro 12 and Axiom 2 Pro 16 only — Insert one edge of the infill piece and then bend the infill piece slightly in the middle to allow the other edge to be inserted into the opposite side.
6. Close the card reader door.
