CHIRP transducers
CHIRP transducers connect directly to the 11-pin 1kW transducer connector.
CHIRP split-pair transducers require a Y-cable (part number: A102146).
B75 & B175 transducers require an operation cable (part number: A80328).

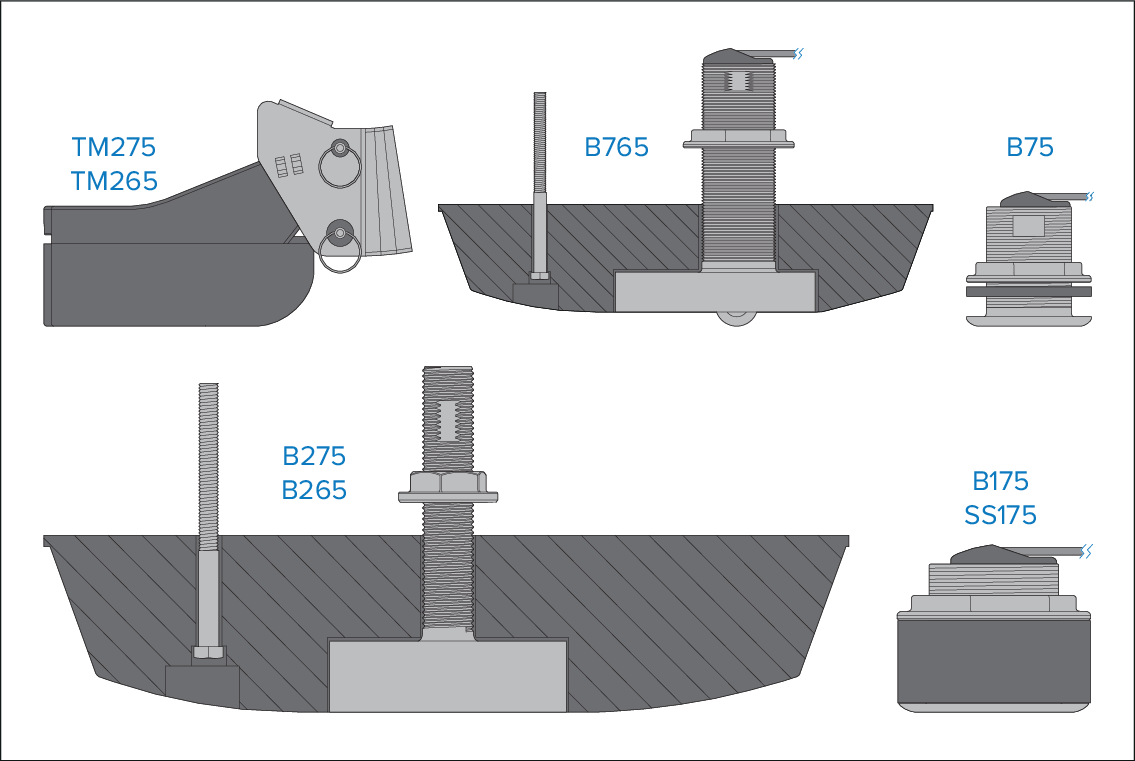

Transom mount transducers
| Part number | Transducer description |
|---|---|
A80318 |
TM275LH-W plastic transducer |
A80013 |
TM265LH plastic transducer |
A80041 |
TM265LM plastic transducer |
Thru-hull mount transducers
| Part number | Transducer description |
|---|---|
A80319 |
B175H-W 0° angled element bronze transducer |
A80320 |
B175H-W 12° angled element bronze transducer |
A80321 |
B175H-W 20° angled element bronze transducer |
A80506 |
SS175H-W 20° angled element stainless steel transducer |
A80322 |
B275LH-W 20° bronze thru-hull mount transducer |
A80016 |
B75L 0° angled element bronze transducer |
A80017 |
B75M 0° angled element bronze transducer |
A80018 |
B75H 0° angled element bronze transducer |
T70060 |
B75LH 0° angled element bronze split-pair transducers |
T70061 |
B75LM 0° angled element bronze split-pair transducers |
T70062 |
B75MH 0° angled element bronze split-pair transducers |
A80033 |
B75L 12° angled element bronze transducer |
A80034 |
B75M 12° angled element bronze transducer |
A80035 |
B75H 12° angled element bronze transducer |
T70063 |
B75LH 12° angled element bronze split pair transducers |
T70064 |
B75LM 12° angled element bronze split pair transducers |
T70065 |
B75MH 12° angled element bronze split pair transducers |
A80036 |
B75M 20° angled element bronze transducer |
A80037 |
B75H 20° angled element bronze transducer |
T70068 |
B75MH 20° angled element bronze split pair transducers |
A80042 |
B175L 0° angled element bronze transducer |
A80043 |
B175M 0° angled element bronze transducer |
A80044 |
B175H 0° angled element bronze transducer |
T70069 |
B175LH 0° angled element bronze split-pair transducers |
T70070 |
B175LM 0° angled element bronze split-pair transducers |
T70071 |
B175MH 0° angled element bronze split-pair transducers |
A80045 |
B175L 12° angled element bronze transducer |
A80046 |
B175M 12° angled element bronze transducer |
A80047 |
B175H 12° angled element bronze transducer |
T70072 |
B175LH 12° angled element bronze split-pair transducers |
T70073 |
B175LM 12° angled element bronze split-pair transducers |
T70074 |
B175MH 12° angled element bronze split-pair transducers |
A80048 |
B175L 20° angled element bronze transducer |
A80049 |
B175M 20° angled element bronze transducer |
A80050 |
B175H 20° angled element bronze transducer |
T70075 |
B175LH 20° angled element bronze split-pair transducers |
T70076 |
B175LM 20° angled element bronze split-pair transducers |
T70077 |
B175MH 20° angled element bronze split-pair transducers |
A80504 |
SS175L 20° angled element stainless steel transducer |
A80505 |
SS175M 20° angled element stainless steel transducer |
A80014 |
B765LH bronze transducer |
A80015 |
B765LM bronze transducer |
A80010 |
B265LH bronze transducer |
A80011 |
B265LM bronze transducer |

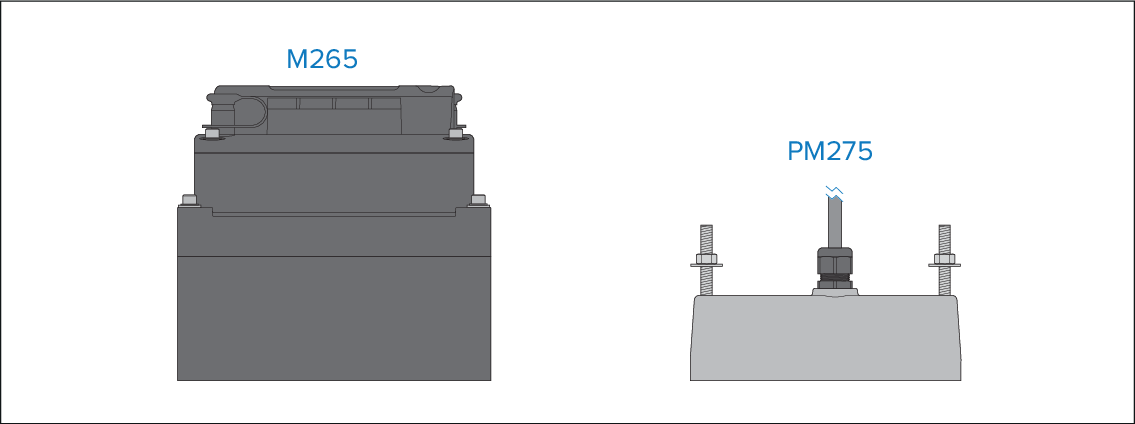

In-hull mount transducers
| Part number | Transducer description |
|---|---|
A80012 |
M265LH plastic transducer |
A80038 |
M265LM plastic transducer |
Pocket / keel mount transducers
| Part number | Transducer description |
|---|---|
A80325 |
PM275LH-W bronze transducer |
