Traditional transducer connections

ConnectionsTransducersTraditional

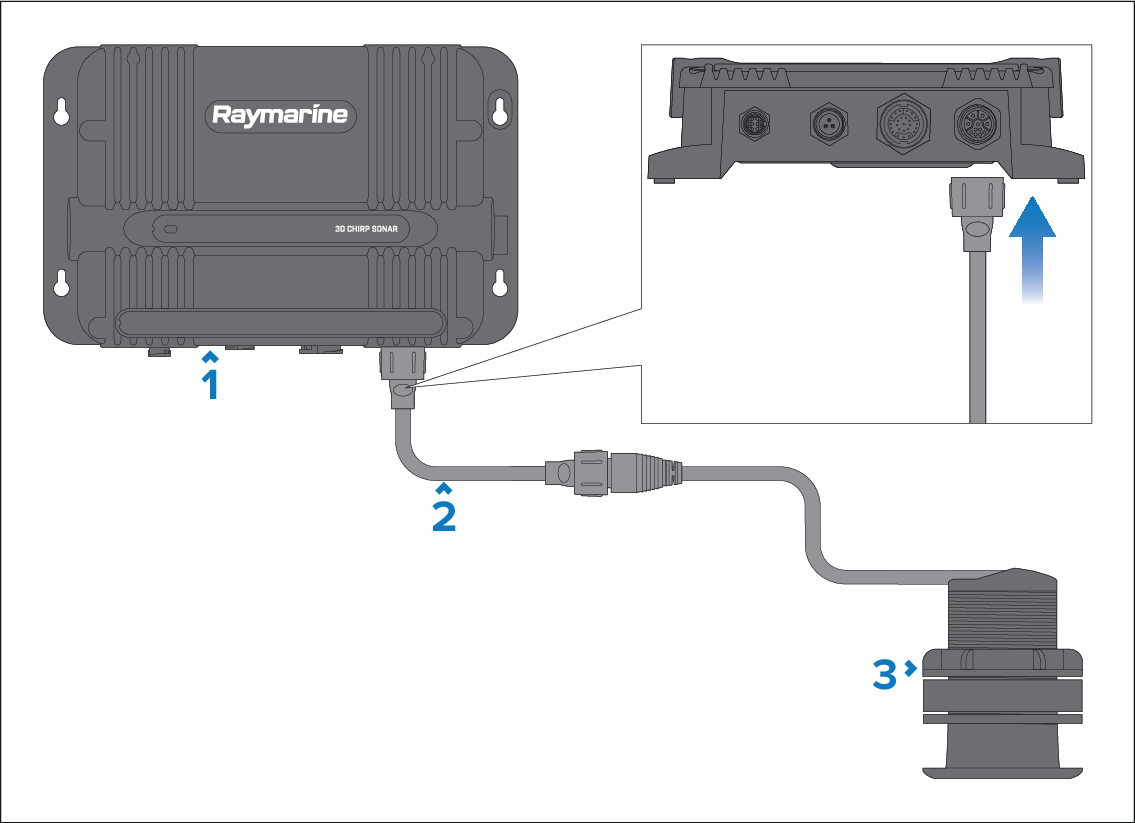

  1. Sonar module.

  2. 11-pin to 8-pin adapter cable (A80496).

  3. Traditional transducer.

Note

For a list of compatible transducers, refer to the following section: Compatible transducers

For a list of applicable transducer extension cables, refer to the following section: Spares and accessories
