Simultaneous RealVision® 3D / RealVision® Max 3D transducer and traditional transducer connections

ConnectionsTransducersSimultaneous RealVision™ and traditional transducer connections

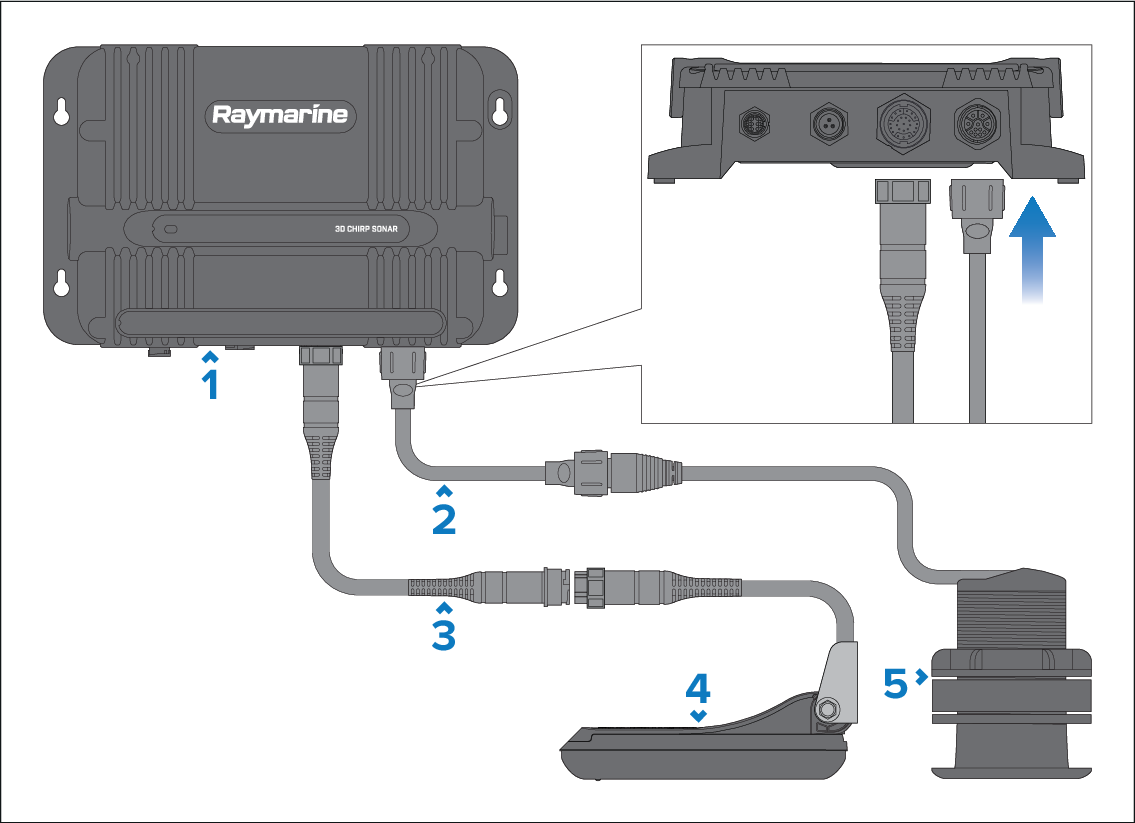

  1. Sonar module.

  2. 11-pin to 8-pin adapter cable (A80496).

  3. Extension cable (optional).

  4. RealVision® 3D / RealVision® Max 3D transducer (including supplied fitted cable).

  5. Traditional transducer.

Note

For a list of compatible transducers, refer to the following section: Compatible transducers

For a list of applicable transducer extension cables, refer to the following section: Spares and accessories
