CHIRP transducer connections

    87436 - Rev 2 - en-US

    CHIRP transducer connections

    ConnectionsTransducersCHIRP

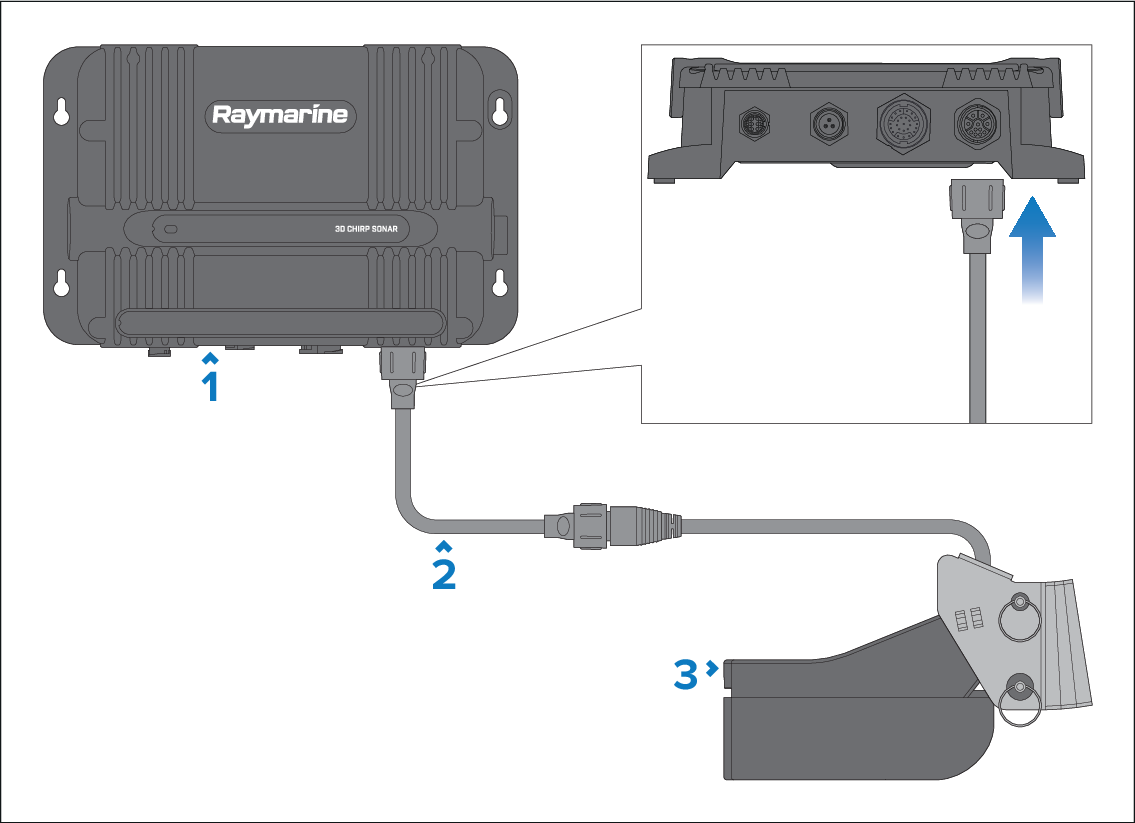

    1. Sonar module.

    2. Extension cable (optional).

    3. CHIRP transducer.

    Note

    For a list of compatible transducers, refer to the following section: Compatible transducers

    For a list of applicable transducer extension cables, refer to the following section: Spares and accessories

    Parent topic: Transducer connections
    Previous topic: CPT-S-Series conical beam transducer connections
    Next topic: Traditional transducer connections
