Network cable extensions

When the required length of a single network cable run is greater than the longest available RayNet cable (20 m (65.6 ft)), a RayNet (male) to (male) adapter cable (A80162) should be used to join the RayNet cables together, to extend the total network cable length.

ConnectionsNetworkMultifunction display (extended cables)NetworkMultifunction display (extended cables)

Note

The connection panel on your Raymarine MFD / chartplotter may differ from that shown, depending on the hardware variant. However, the network connection method remains the same for all products featuring RayNet connectors.

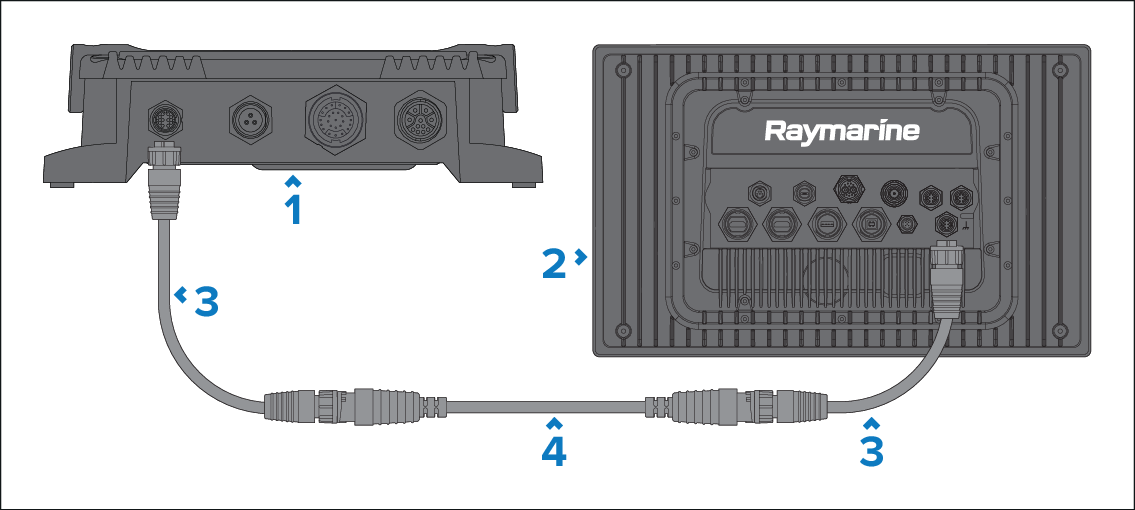

  1. Sonar module.

  2. Compatible Raymarine MFD / chartplotter.

  3. RayNet (female) to RayNet (female) cable.

  4. RayNet (male) to RayNet (male) adapter cable (A80162) (100 mm (3.94 in)).

Note

For a list of compatible Raymarine MFDs / chartplotters, refer to: Product and system overview
